BRM BRM189 Ford Capri RS2600 #4 DRM Nürburgring 500km 1973 Karl-Ludwig Weiss 1/24 Slot Car

BRM BRM189 Ford Capri RS2600 #4 DRM Nürburgring 500km 1973 Karl-Ludwig Weiss 1/24 Slot Car

BRM189

$214.00 AUD
$229.00 AUD $214.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

BRM189 Ford Capri RS2600 #4 – DRM Nürburgring 500km 1973

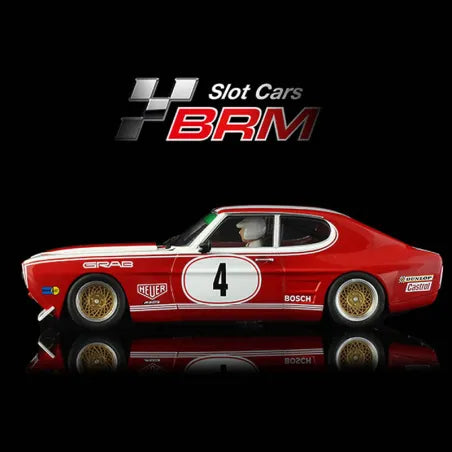

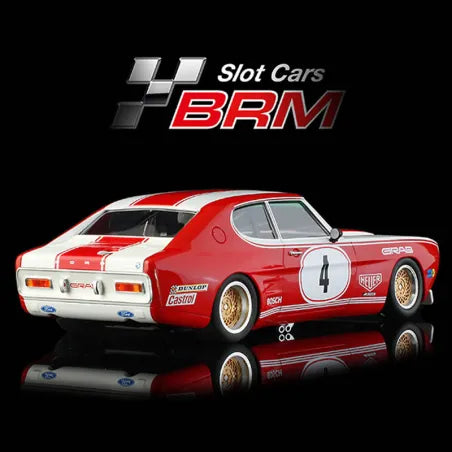

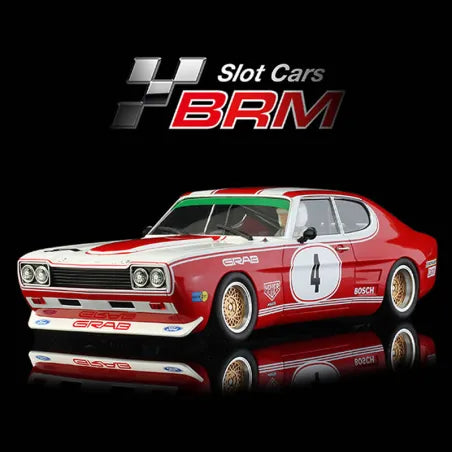

The BRM189 Ford Capri RS2600 #4 reproduces the Ford Tuning Bernhard Grab Capri driven by Karl-Ludwig Weiss in the DRM Nürburgring 500 Kilometres on 2 September 1973.

The real #4 Ford Capri RS2600 finished 13th overall after starting from 108th on the grid. BRM recreates this distinctive white-and-red Grab/Heuer competition car in 1/24 scale, using its two-piece anodised aluminium chassis, front negative-camber system and anglewinder drivetrain.

Model Features

  • BRM 1/24 scale Ford Capri RS2600
  • Race number #4
  • Ford Tuning Bernhard Grab
  • Karl-Ludwig Weiss
  • DRM Nürburgring 500 Kilometres, 1973
  • 13th overall
  • Analogue operation
  • Anglewinder motor configuration
  • Rear-wheel drive
  • BRM BLUE 19,000 rpm motor
  • Two-piece 3 mm anodised aluminium chassis
  • Adjustable chassis-section movement
  • Front negative-camber system
  • Aluminium front and rear wheels
  • Rear ball bearings
  • Sprung guide system
  • No magnet
  • No lighting
  • No suspension

Specifications & Fitted Components

Component Fitted Specification / BRM Reference
Body Ford Capri RS2600 #4 – Ford Tuning Bernhard Grab, DRM Nürburgring 500km 1973
Scale 1:24
Chassis Body Plate BRM S-407C – Capri anodised aluminium chassis plate
Chassis Plate BRM S-408C – Capri anodised aluminium chassis plate
Chassis Construction Two-piece anodised aluminium construction, 3 mm thick, with adjustable movement between chassis sections
Motor BRM S-417 – BRM BLUE short-can motor, 19,000 rpm
Motor Configuration Anglewinder
Motor Holder BRM S-413 – aluminium motor holder
Pinion Gear BRM S-420 – nylon anglewinder pinion, 12 teeth
Spur Gear BRM S-419 – nylon anglewinder spur gear, 33 teeth, aluminium hub with screw fixing
Gear Ratio 12:33
Front Wheels BRM S-402KF – aluminium Group 2 front wheels, 17/15.4 × 10 mm
Rear Wheels BRM S-402KR – aluminium Group 2 rear wheels, 17/15.4 × 11 mm
Wheel Inserts BRM S-406S – BBS-style wheel inserts
Front Tyres BRM S-403VW – Group 2 front tyres, 23 × 10 mm
Rear Tyres BRM S-404K – standard rear tyres, 23 × 11.5 mm, Shore 30
Front Axles BRM S-416A – two separate solid front axle sections, 3 mm diameter, mounted on brass bearings for negative front-wheel camber
Rear Axle BRM S-416KR – solid steel rear axle, 3 mm diameter
Front Axle Holders BRM S-411K – aluminium front axle holders
Rear Axle Holders BRM S-412K – aluminium rear axle holders
Rear Bearings Two ball bearings integrated into the aluminium rear axle holders
Guide Blade BRM S-026SS – screw-mounted racing guide blade
Guide Springs RevoSlot RS210SP – guide springs
Guide Screw RevoSlot RS210S – steel guide screw
Guide Mount Aluminium guide well
Body Nuts BRM S-415 – brass H1.5 mm nuts
Windscreen / Light Set BRM S-425C – Capri front and rear light/window set
Windscreen Wipers BRM S-423K – Capri rubber windscreen wiper set
Mirrors BRM S-426A – rubber mirror set
Drive Rear-wheel drive
System Analogue
Digital Conversion Chassis prepared to accept a suitable digital decoder; decoder not included
Magnet None
Lighting None
Suspension None
Weight 136 g

Race History

The full-size Ford Capri RS2600 #4 was entered by Ford Tuning Bernhard Grab for the DRM Nürburgring 500 Kilometres on 2 September 1973.

Driven by Karl-Ludwig Weiss, the Capri started from 108th on the grid and finished 13th overall, completing seven laps of the 22.835 km Nürburgring Nordschleife. The car was classified 8th in Division I.

The period car is documented with white and red Grab/Heuer colours and Dunlop tyres. BRM reproduces the distinctive competition appearance in its 1/24 scale Capri RS2600 tooling.

Technical Notes

The BRM189 uses the S-417 BRM BLUE 19,000 rpm motor with an S-420 12-tooth nylon pinion and S-419 33-tooth spur gear, producing the documented 12:33 transmission ratio.

The Capri chassis uses separate front axle sections to provide negative front-wheel camber, while the solid rear axle runs in two ball bearings integrated into the aluminium rear axle holders.

BRM189 is supplied ready to run as an analogue 1/24 slot car and is compatible with suitable analogue slot racing systems.
