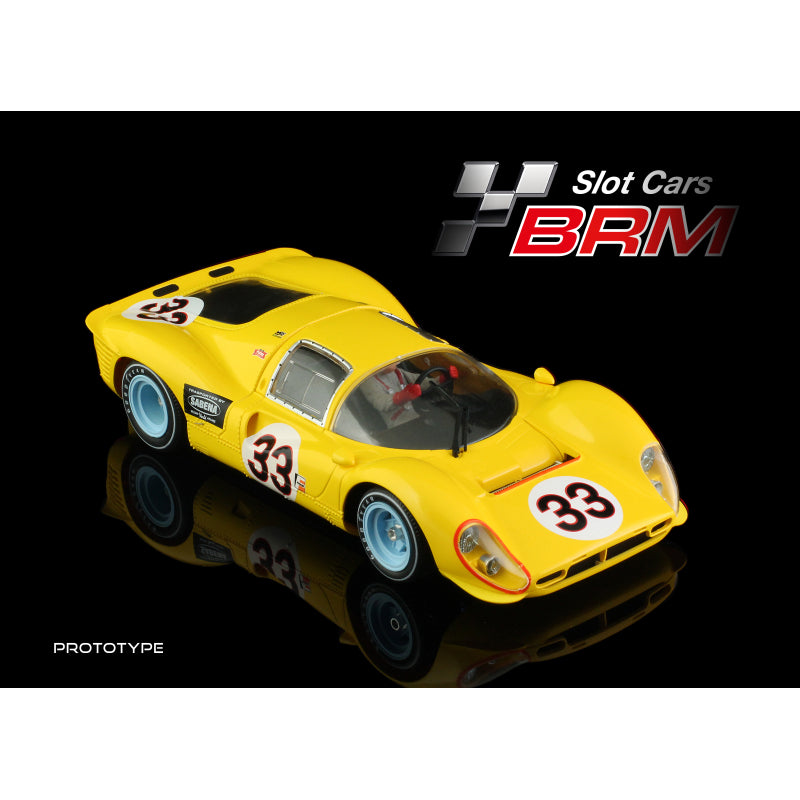

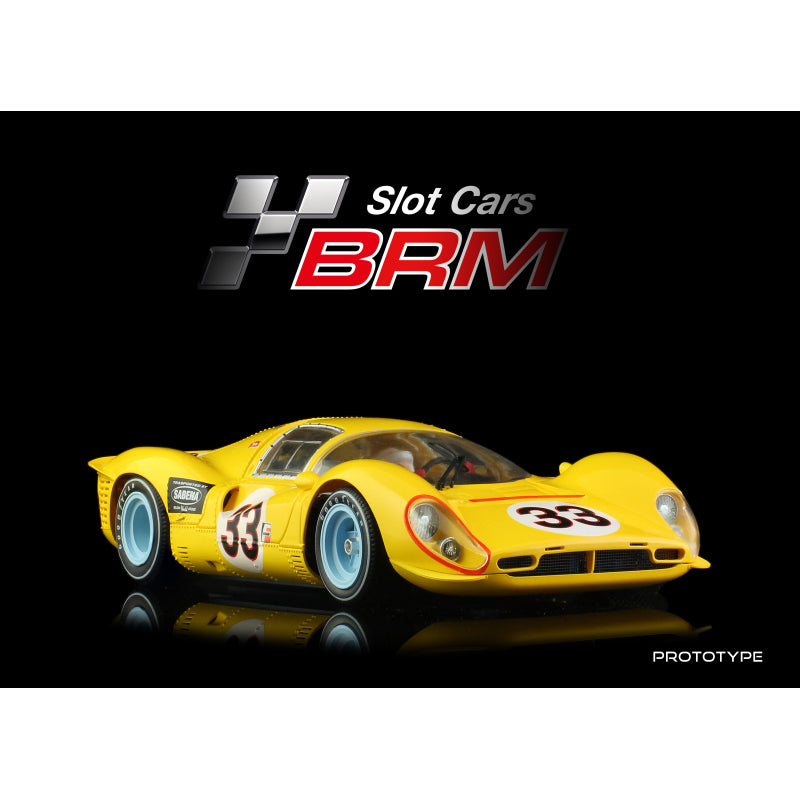

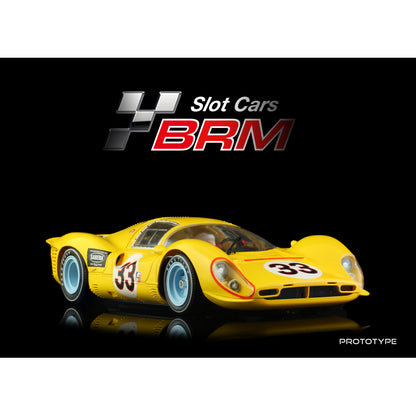

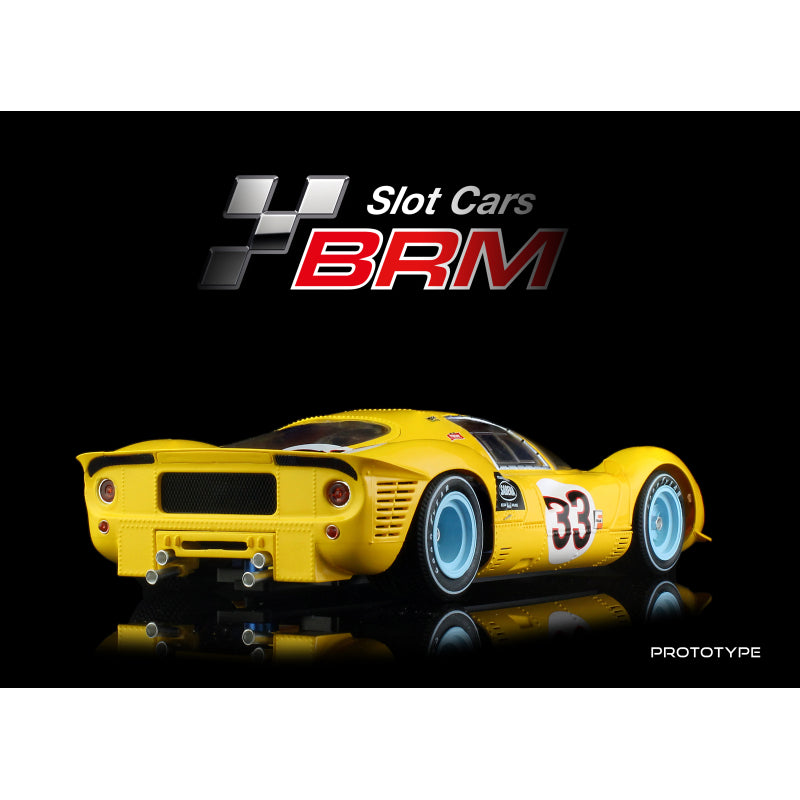

BRM BRM203 Ferrari 412P #33 Daytona 1967 Ecurie Francorchamps 1/24 Slot Car

BRM BRM203 Ferrari 412P #33 Daytona 1967 Ecurie Francorchamps 1/24 Slot Car

BRM203

$234.00 AUD
$265.00 AUD $234.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

Available from Australia's specialist slot car parts store.

Bring one of Ferrari's legendary 1960s endurance racing prototypes to your circuit with the BRM203 Ferrari 412P #33 Ecurie Francorchamps. This highly detailed 1/24 scale model recreates the Ferrari 412P chassis 0850 entered by Ecurie Francorchamps for the 1967 24 Hours of Daytona, driven by Willy Mairesse and Jean Blaton ("Beurlys").

The BRM203 features BRM's new CNC-machined two-piece black anodised aluminium racing chassis with a floating Y plate, aluminium motor mount and separate front and rear axle carriers. Power comes from BRM's T-RS Evo 25,000 rpm long-can motor mounted in an anglewinder configuration, driving the rear wheels through an 11:41 gear ratio.

The car is fitted with ball bearings on the front and rear axles, aluminium wheels, a sprung swivel guide and a lightweight detailed interior. It is supplied fully assembled for analogue 12-volt operation and the chassis can accept a suitable digital decoder, although no decoder is included.

Features:

  • Highly detailed 1/24 scale Ferrari 412P
  • Ecurie Francorchamps #33 livery
  • Willy Mairesse / Jean Blaton ("Beurlys")
  • 1967 24 Hours of Daytona
  • Ferrari 412P chassis 0850
  • New CNC-machined two-piece black anodised aluminium racing chassis
  • Floating Y plate / body mounting system
  • BRM T-RS Evo 25,000 rpm long-can motor
  • Anglewinder motor configuration
  • Rear-wheel drive
  • 11:41 gear ratio
  • Ball bearings on front and rear axles
  • Aluminium front and rear wheels with M3 screws
  • Sprung swivel guide with replaceable braids
  • Detailed lightweight interior with driver figure
  • No magnet
  • No lighting
  • No suspension
  • Analogue 12 V DC operation
  • Chassis accepts a suitable digital decoder
  • Ready-to-Run, fully assembled

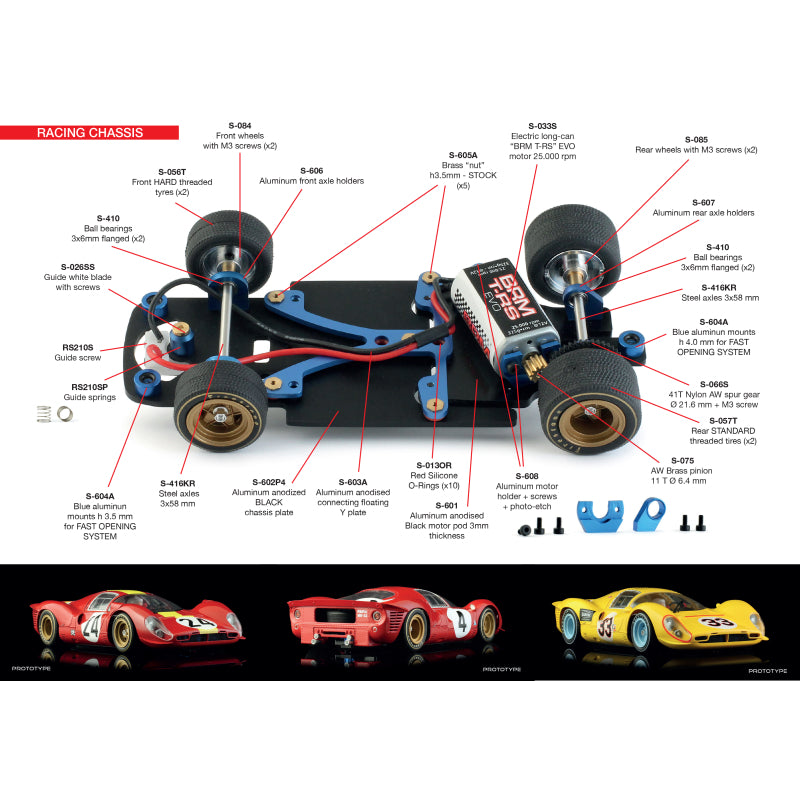

Specifications & Fitted Components:

Brand BRM
Model / SKU BRM203
Scale 1/24 Scale
Model Ferrari 412P #33 - Ecurie Francorchamps
Driver / Event Willy Mairesse / Jean Blaton ("Beurlys") - 24 Hours of Daytona 1967
Race Result Did not finish - gearbox failure
Chassis CNC-machined two-piece black anodised aluminium racing chassis with floating Y plate
Motor BRM T-RS Evo Black Long-Can Motor, 25,000 rpm, 325 gcm @ 12 V - BRM S-033S
Motor Holder Black Anodised Aluminium Motor Pod, 3 mm - BRM S-601
Floating Y Plate Blue Anodised Aluminium Floating Y Plate - BRM S-603A
Motor Mount Hardware Aluminium Motor Mount Screws - BRM S-608
Motor Mount Nuts Brass H3.5 mm Nuts - BRM S-605A
Pinion 11-Tooth Brass Anglewinder Pinion, Ø6.4 mm - BRM S-075
Crown Gear 41-Tooth Nylon Anglewinder Spur Gear, Ø21.6 mm + M3 Screw - BRM S-066S
Gear Ratio 11:41
Front Wheels Aluminium Front Wheels with M3 Screws, Ø17.5 x 11 mm - BRM S-084
Rear Wheels Aluminium Rear Wheels with M3 Screws, Ø17.5 x 15.5 mm - BRM S-085
Front Tyres Hard Front Tyres, Ø24.5 mm external / Ø17 mm internal x 12.5 mm wide - BRM S-056T
Rear Tyres Standard Rear Tyres, Ø26.5 mm external / Ø20 mm internal x 17 mm wide - BRM S-057T
Front Axle Holders Aluminium Front Axle Holders - BRM S-606
Rear Axle Holders Aluminium Rear Axle Holders - BRM S-607
Front / Rear Axles 3 mm Steel Axles with Ball Bearings
Ball Bearings Flanged Ball Bearings, 3 x 6 mm - BRM S-410
Front Axle / Hub Width 74.5 mm
Rear Axle / Hub Width 75 mm
Guide Sprung Swivel Guide Blade, 23 x 7 mm, with Replaceable Braids - BRM S-026SS
Guide Springs Guide Springs - BRM / REVO RS210SP
Guide Screw Steel Guide Screw - BRM / REVO RS210S
Body Mounts Blue Aluminium Fast Opening System Mounts, H3.5 mm / H4.0 mm - BRM S-604A
Body Mount O-Rings Red Silicone O-Rings - BRM S-013OR
Chassis Screw Set New Racing Chassis Full Screw Set - BRM S-611
Magnet None
Lighting None
Suspension None
Motor Configuration Anglewinder
Drive Rear-wheel drive
Overall Length 175 mm
Overall Width 87 mm
Overall Height 40 mm
Wheelbase 90 mm
Chassis Weight 131 g
Body Weight 41 g
Total Weight 172 g
System Analogue, 12 V DC
