BRM BRM204 Ferrari 330 P4 #4 Monza 1000km 1967 Parkes Scarfiotti 1/24 Slot Car

BRM BRM204 Ferrari 330 P4 #4 Monza 1000km 1967 Parkes Scarfiotti 1/24 Slot Car

BRM204

$234.00 AUD
$239.00 AUD $234.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

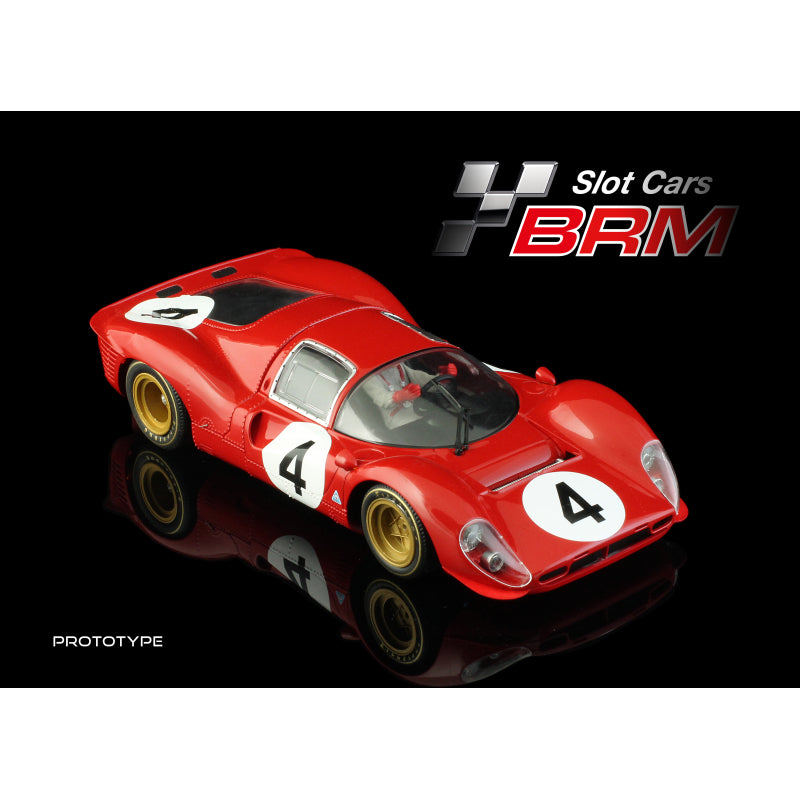

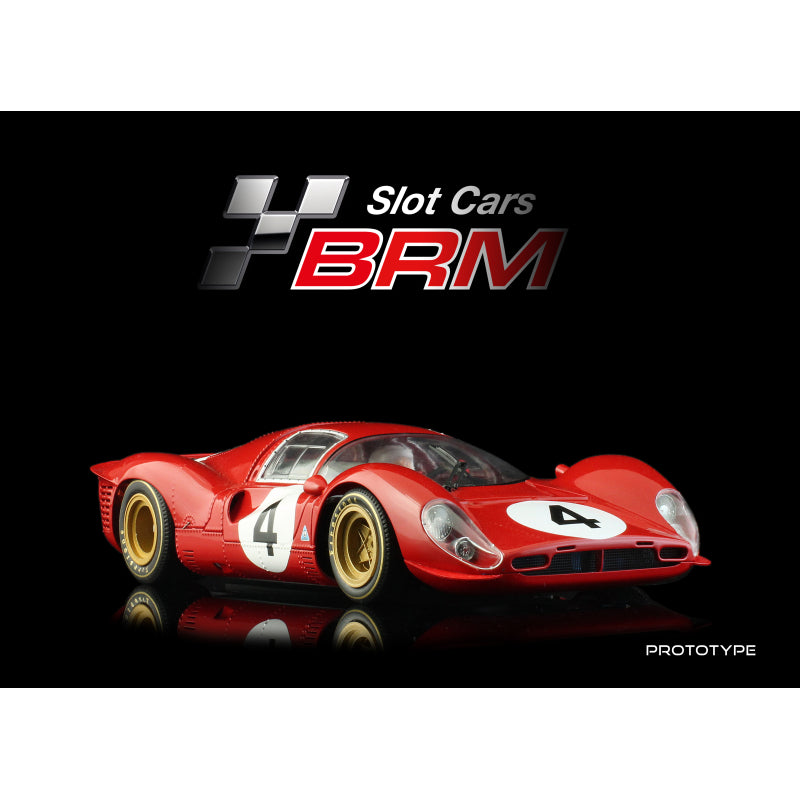

BRM204 Ferrari 330 P4 #4 – Monza 1000km 1967

Recreate one of Ferrari's legendary endurance racers with the BRM204 Ferrari 330 P4 #4, depicting the Scuderia Ferrari entry driven by Mike Parkes and Ludovico Scarfiotti at the 1,000 Kilometres of Monza in 1967.

The real Ferrari 330 P4 #4 finished 2nd overall at Monza, completing a Ferrari one-two behind the sister #3 car. BRM's 1/24 reproduction combines the highly detailed 330 P4 body with BRM's aluminium Racing Legends chassis and a powerful T-RS Evo 25,000 rpm motor.

Model Features

  • Official BRM 1/24 scale Ferrari 330 P4
  • Race number #4
  • Mike Parkes / Ludovico Scarfiotti
  • 1,000 Kilometres of Monza, 1967
  • 2nd-place race car
  • Analogue operation
  • Anglewinder motor configuration
  • Rear-wheel drive
  • BRM T-RS Evo 25,000 rpm motor
  • Aluminium Racing Legends chassis
  • No magnet
  • No lighting
  • Prepared to accept a suitable digital decoder

Specifications & Fitted Components

Component Fitted Specification / BRM Reference
Body Ferrari 330 P4 #4 – Monza 1000km 1967
Scale 1:24
Motor BRM S-033S T-RS Evo long-can motor – 25,000 rpm, 325 g/cm
Motor Configuration Anglewinder
Pinion Gear BRM S-075 – 11-tooth brass anglewinder pinion, Ø6.4 mm
Spur Gear BRM S-066S – 41-tooth nylon anglewinder spur gear, Ø21.6 mm, M3 screw fixing
Gear Ratio 11:41
Front Wheels BRM S-084 – aluminium wheels with M3 screw fixing; 17.5 × 11.8 mm measured with insert fitted
Rear Wheels BRM S-085 – aluminium wheels with M3 screw fixing; 17.5 × 16.6 mm measured with insert fitted
Front Tyres BRM S-056T – hard threaded tyres; 25.2 × 12.9 mm measured on rim
Rear Tyres BRM S-057T – standard/soft threaded tyres; 27.6 × 16.7 mm measured on rim
Front Axle BRM S-416KR – solid steel axle, 3 × 58 mm
Rear Axle BRM S-416KR – solid steel axle, 3 × 58 mm
Front Axle Holders BRM S-606 – aluminium front axle holders
Rear Axle Holders BRM S-607 – aluminium rear axle holders
Bearings BRM S-410 – flanged ball bearings, 3 × 6 mm
Guide BRM S-026SS – white racing guide blade, screw-mounted
Guide Springs RevoSlot RS210SP – guide springs
Guide Screw RevoSlot RS210S – steel guide screw
Motor Pod BRM S-601 – black anodised aluminium motor pod, 3 mm thick
Floating Y Plate BRM S-603A – anodised aluminium floating connecting Y plate
Motor Holder / Mount BRM S-608 – aluminium motor holder screws
Motor Mount Nuts BRM S-605A – brass H3.5 nuts
Body Mounts BRM S-604A – blue aluminium fast-opening mounts
Body Mount O-Rings BRM S-013OR – red silicone O-rings
Chassis Screw Set BRM S-611 – complete screw set for the Racing Legends chassis
Chassis BRM next-generation anodised aluminium Racing Legends chassis
Suspension None
Magnet None
Lighting None
Drive Rear-wheel drive
System Analogue
Digital Conversion Chassis prepared to accept a suitable digital decoder; decoder not included
Overall Length 170 mm
Overall Width / Depth 79 mm
Weight Approximately 170–171 g

Race History

The full-size Ferrari 330 P4 #4 was entered by Scuderia Ferrari / Ferrari SEFAC for the 1,000 Kilometres of Monza on 25 June 1967. Driven by Mike Parkes and Ludovico Scarfiotti, the car finished 2nd overall, contributing to a Ferrari one-two finish at its home circuit.

The BRM204 captures this important 1967 Ferrari endurance racing entry in BRM's detailed 1/24 Racing Legends format.

BRM204 is supplied as an analogue slot car and is ready to run on compatible analogue 1/24 slot car systems.
