BRM BRM205 Ferrari 330 P4 / 412P Full White Kit 1/24 Slot Car

BRM BRM205 Ferrari 330 P4 / 412P Full White Kit 1/24 Slot Car

BRM205

$198.00 AUD
$215.00 AUD $198.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 4 left

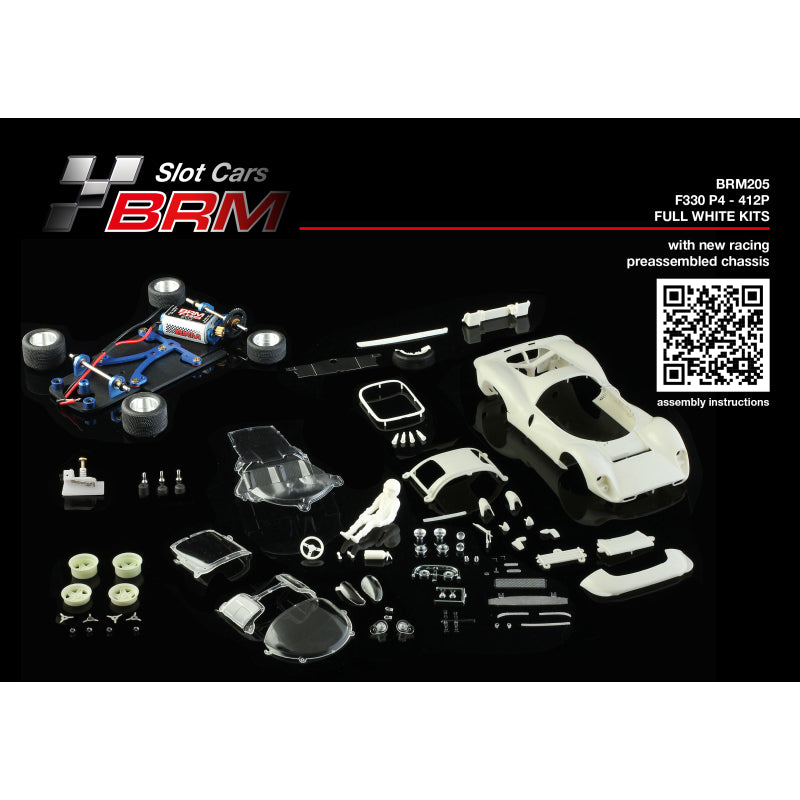

BRM205 Ferrari 330 P4 / 412P Full White Kit – 1/24 Slot Car

The BRM205 is a full white-kit version of BRM's Ferrari 330 P4 / 412P, supplied with a pre-assembled, high-performance aluminium racing chassis. The kit allows the modeller to build and finish their own 1/24 scale Ferrari 330 P4 or 412P, making it an excellent choice for experienced slot car builders and BRM collectors.

Unlike a standard ready-to-run BRM, the BRM205 is supplied with an unpainted plastic body and associated clear parts, while the sophisticated racing chassis comes pre-assembled. The chassis uses BRM's T-RS Evo 25,000 rpm long-can motor, anglewinder transmission, aluminium wheels, 3 mm steel axles, ball bearings and BRM's floating chassis/body mounting system.

Key Features

  • 1:24 scale Ferrari 330 P4 / 412P full white kit
  • Unpainted plastic body for individual finishing
  • Pre-assembled aluminium racing chassis
  • Anglewinder motor configuration
  • Rear-wheel drive
  • BRM T-RS Evo 25,000 rpm motor
  • 11T brass pinion / 41T nylon spur gear
  • 11:41 final-drive ratio
  • Aluminium front and rear wheels
  • 3 mm steel axles
  • Flanged ball bearings
  • Floating aluminium Y-plate
  • Fast Opening System body mounts
  • Sprung racing guide
  • No magnet
  • No lighting
  • Analogue operation
  • Suitable for conversion to Carrera DIGITAL 132/124 using 20026732; not a Scalextric Digital plug-in model

Specifications & Fitted Components

Component Specification BRM Part Code
Manufacturer BRM —
Model Ferrari 330 P4 / 412P Full White Kit BRM205
Scale 1:24 —
Body Unpainted plastic Ferrari 330 P4 / 412P body kit S-630
Clear parts Pre-painted transparent parts, including lighting components S-631
Motor BRM T-RS Evo long-can, 25,000 rpm @ 12 V; 325 g·cm @ 12 V S-033S
Motor configuration Anglewinder —
Pinion gear 11-tooth brass anglewinder pinion, Ø6.4 mm S-075
Spur gear 41-tooth nylon anglewinder spur, Ø21.6 mm, M3 fixing S-066S
Gear ratio 11:41 — 3.73:1 —
Front wheels Aluminium, Ø17.5 × 11.8 mm, M3 fixing S-084
Rear wheels Aluminium, Ø17.5 × 16.6 mm, M3 fixing S-085
Front tyres Hard threaded tyres; approx. 25.2 × 12.9 mm measured on rim S-056T
Rear tyres Standard threaded tyres; approx. 27.6 × 16.7 mm measured on rim S-057T
Front axle 3 mm steel axle, 58 mm S-416KR
Rear axle 3 mm steel axle, 58 mm S-416KR
Front axle holders Anodised aluminium S-606
Rear axle holders Anodised aluminium S-607
Bearings Flanged ball bearings, 3 × 6 mm S-410
Motor pod Black anodised aluminium, 3 mm thick S-601
Floating Y-plate Anodised aluminium connecting floating Y plate S-603A
Motor holder Aluminium motor holder with screws and photo-etch S-608
Body mount supports Blue aluminium Fast Opening System mounts, H3.5 mm S-604B
Body mount supports Blue aluminium Fast Opening System mounts, H4.0 mm S-604A
Brass nuts H3.5 mm stock brass nuts S-605A
O-rings Red silicone O-rings S-013OR
Guide White racing guide blade with pick-up braids S-026SS
Guide screw Steel guide screw RS210S
Guide springs Guide return springs RS210SP
Chassis screws Complete screw set for the new-generation chassis S-611
Motor mounting screws Motor support screws S-608
Body/chassis supports O-ring support mounts S-604A
Traction magnet Not fitted —
Lighting Not fitted —
Suspension Not fitted —
Drive Rear-wheel drive —
Overall length 170 mm —
Overall width 79 mm —

Build Your Own Ferrari

The BRM205 gives experienced modellers the opportunity to create their own Ferrari 330 P4 or 412P rather than receiving a pre-painted race replica. The supplied chassis is already equipped with BRM's full racing hardware, leaving the bodywork and finishing to the builder.

Note: This is a model-building kit, not a factory-painted ready-to-run replica. Painting, finishing and assembly of the body are required.
