NSR 0563IL Formula 22/26 Rosso Fuoco #16 Charles Leclerc (1/32) Slot Car
NSR 0563IL Formula 22/26 Rosso Fuoco #16 Charles Leclerc (1/32) Slot Car
SKU:0563IL
Low stock: 2 left
Couldn't load pickup availability
NSR 0563IL Formula 22/26 Rosso Fuoco #16 Charles Leclerc (1/32) Slot Car

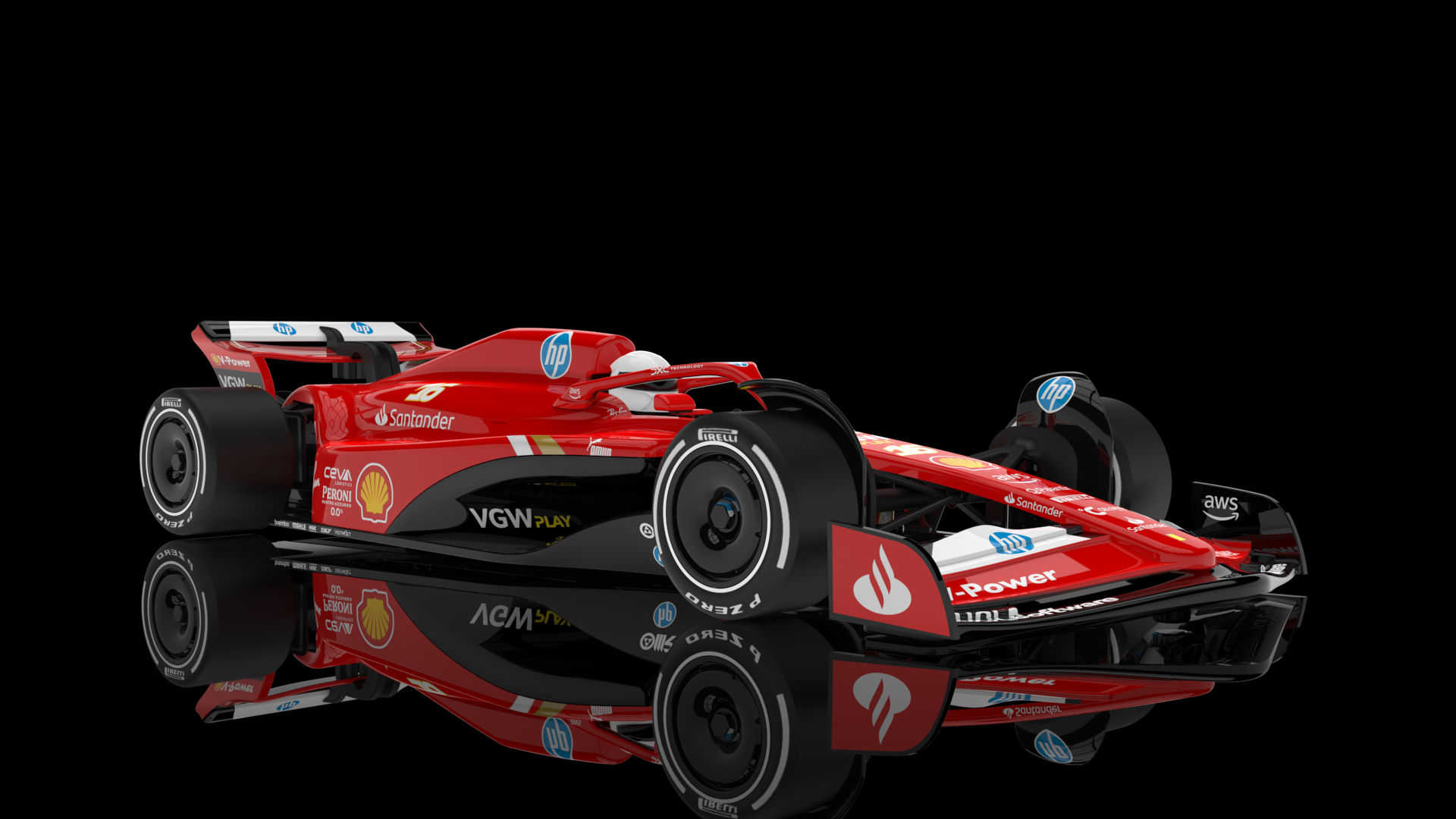

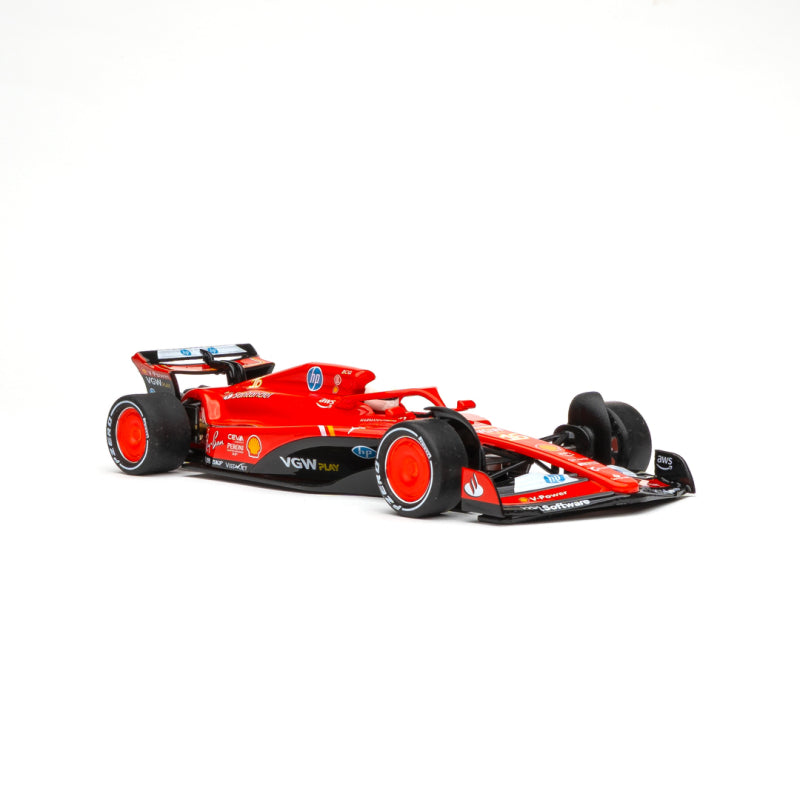

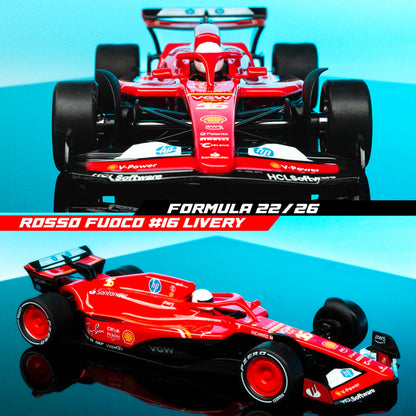

The NSR 0563IL Formula 22/26 Rosso Fuoco #16 is NSR's high-performance modern Formula car finished in Ferrari-inspired Rosso Fuoco colours and carrying Charles Leclerc's #16. It forms part of NSR's Formula 22/26 range, a generic modern Formula design inspired by the 2022–2026 era rather than an exact reproduction of one specific full-size F1 chassis.
The model combines NSR's lightweight Formula 22/26 platform with an inline King EVO3 motor, adjustable chassis and motor-mount geometry, aluminium Air System wheels and NSR's competition-oriented gearing. It is supplied as an analogue car and is designed primarily for performance straight out of the box while retaining substantial tuning potential.
Key Features
- NSR 0563IL Formula 22/26

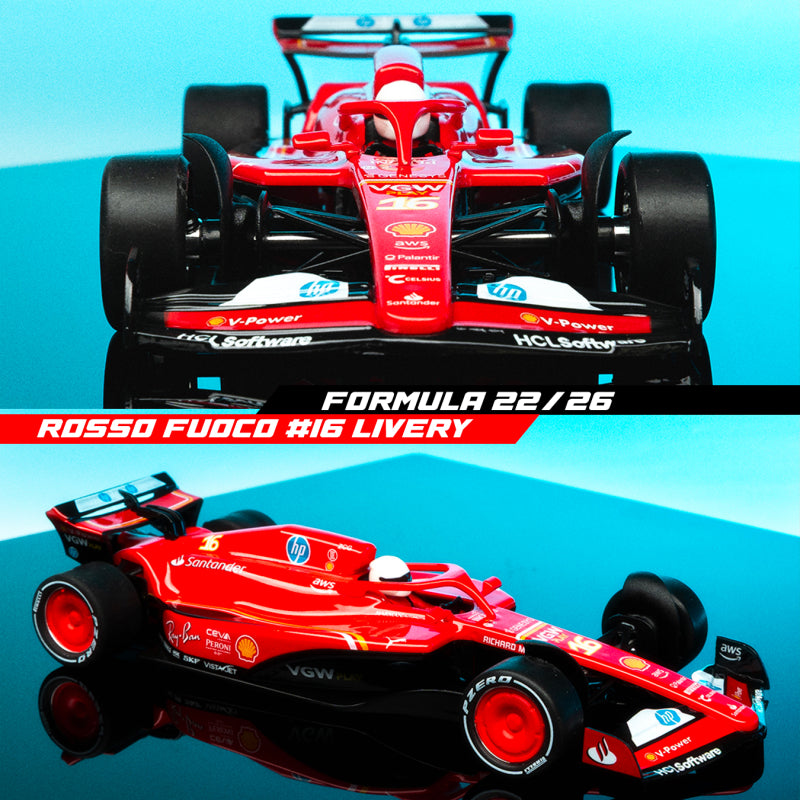

- Rosso Fuoco Ferrari-inspired livery
- #16 Charles Leclerc
- (1/32) scale
- 2025 production
- Inline motor configuration
- Rear-wheel drive
- NSR King EVO3 21,400 rpm motor
- 10T / 27T inline gearing
- Aluminium Formula 22/26 wheels

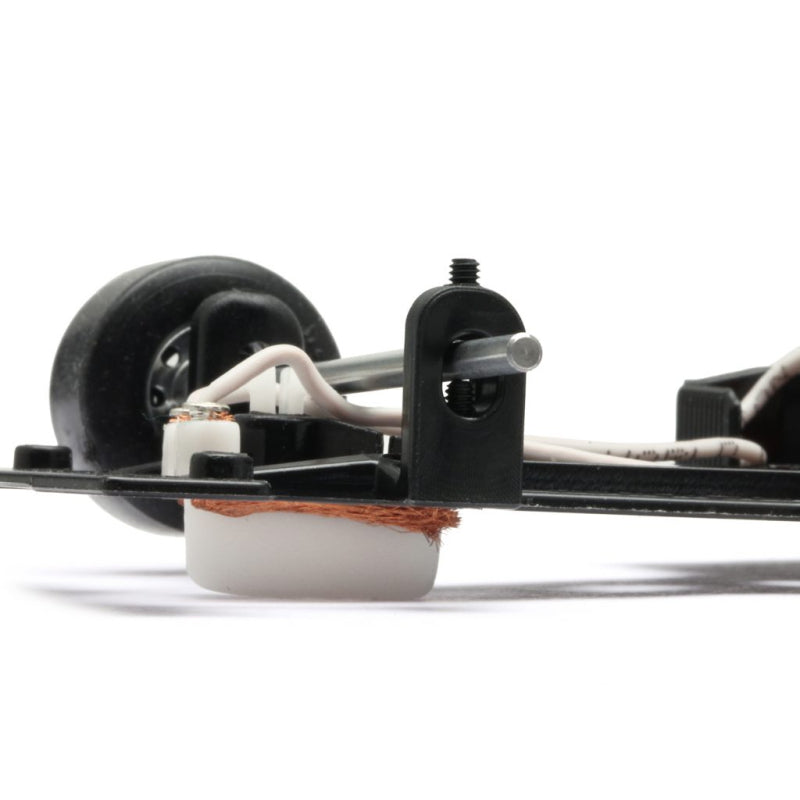

- Adjustable front axle ride height
- Adjustable motor-pod mounting

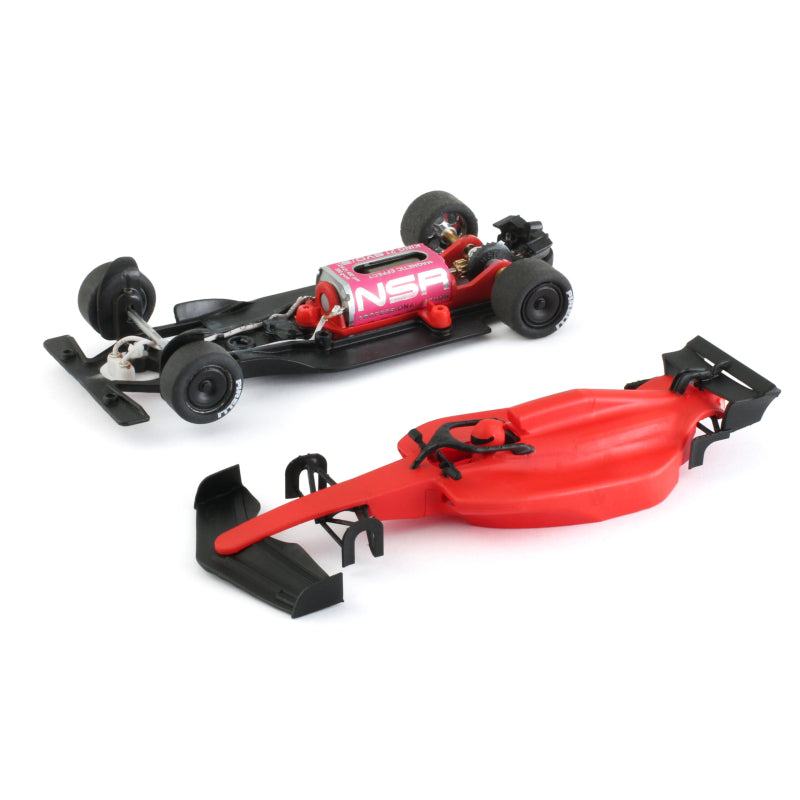

- Adjustable chassis/body configuration
- Machined bronze self-lubricating bushings
- Heat-treated steel axles
- No lighting
- No suspension fitted
- Analogue operation
- Digital conversion possible with a suitable decoder

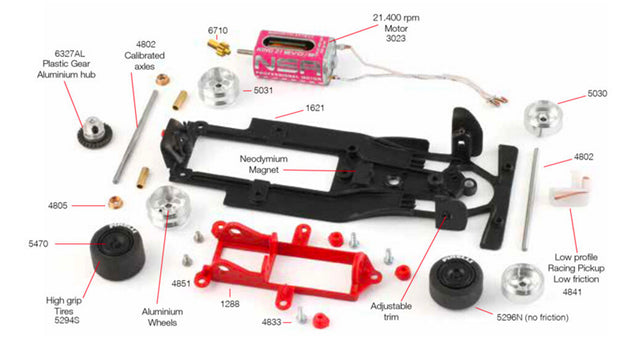

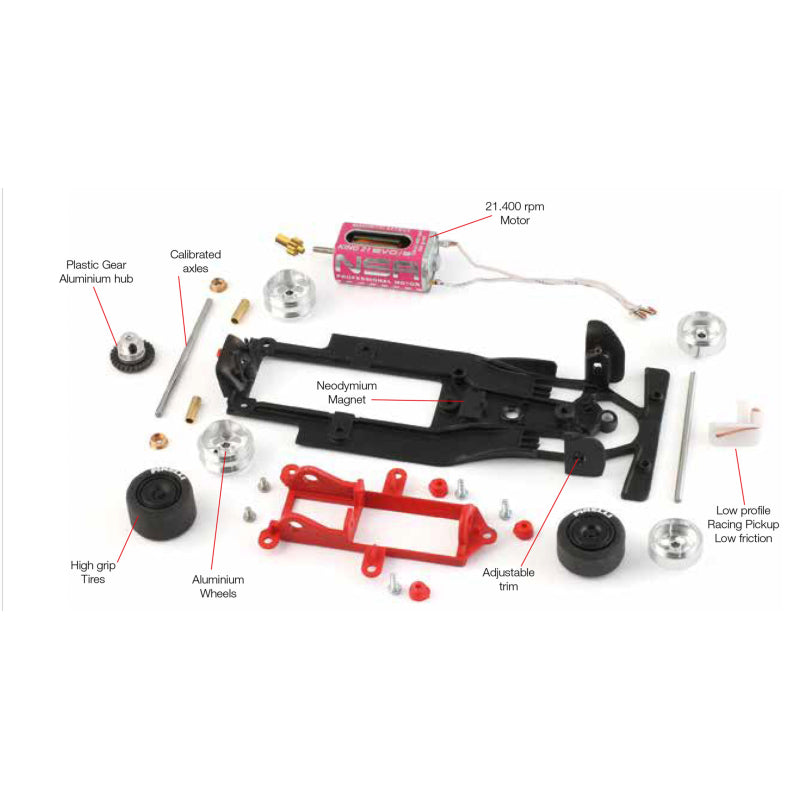

Specifications & Fitted Components
| Component | Description / Specification | NSR Product Code |
|---|---|---|
| Body | Formula 22/26 body, Rosso Fuoco #16 livery | 1550 |
| Chassis | Formula 22/26 medium chassis | 1621 |
| Motor | King EVO3 long-can motor, 21,400 rpm, 350 g·cm | 3023 |
| Motor Mount | Formula 22/26 inline motor mount | 1288 |
| Pinion | 10-tooth metal pinion | 6710 |
| Crown Gear | 27-tooth inline crown gear | 6327AL |
| Front Wheels | Aluminium, Ø16.5 × 8 mm | 5030 |

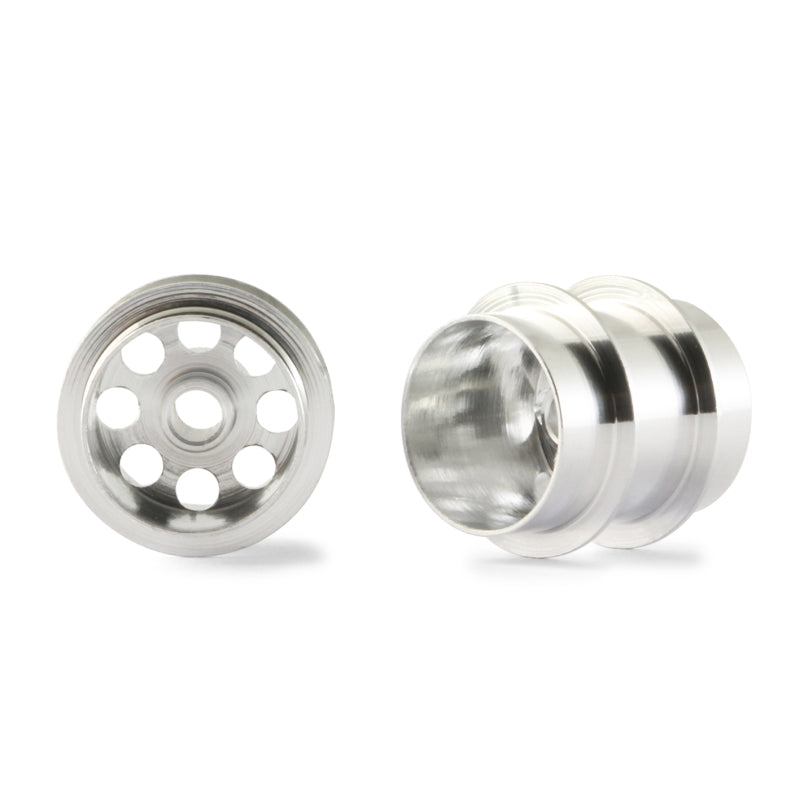

| Rear Wheels | Aluminium Air System, Ø16.5 × 10 mm | 5031 |
| Front Tyres | Formula 22/26 front tyre, approximately 18.5 × 9.5 mm | 5296N |
| Rear Tyres | 19 × 13 mm SuperGrip slick | 5294S |
| Wheel Inserts | Formula 22/26 black wheel-insert set | 5470 |
| Front & Rear Axles | 3/32" hard-steel axles, 55 mm reference | 4802 |
| Rear Bushings | Machined bronze self-lubricating racing bushings | 4805 |
| Pick-up Guide | Low-profile racing pick-up | 4841 |
| Pick-up Braids | Super Racing copper braid | 4822 |
| Motor Wiring | Extra-flexible silicone motor wire | 4824 |
| Body Screws | 2.2 × 6.5 mm standard NSR body screws | 4833 |
| Motor Screws | M2 × 3 mm long-can motor screws | 4851 |
| Motor-Mount Screws | Plastic cups and screws kit | 4878 |
Gear Ratio
| Component | Specification |
|---|---|
| Pinion | 10T |
| Crown | 27T |
| Overall Ratio | 2.70:1 |
Technical Specifications
| Manufacturer | NSR |
| Product Code | 0563IL |
| Barcode | 5056397800063 |
| Model | Formula 22/26 Rosso Fuoco #16 |
| Driver | Charles Leclerc |
| Scale | (1/32) |
| System | Analogue |
| Motor Position | Inline |
| Drive | Rear-wheel drive |
| Motor | NSR King EVO3 |
| Motor Speed | 21,400 rpm |
| Motor Torque | 350 g·cm |
| Gearing | 10T / 27T |
| Gear Ratio | 2.70:1 |
| Lighting | No |
| Suspension | No |
| Front Axle Width | 68 mm |
| Rear Axle Width | 65 mm |
| Wheelbase | 101–102 mm |
| Length | 158 mm |
| Height | 28 mm |
| Weight | Approximately 75–76 g |
| Production Year | 2025 |
Digital Conversion
The NSR 0563IL is supplied as an analogue slot car. Digital conversion is possible, but a decoder is not fitted and conversion is not a simple plug-and-play installation.
- Carrera DIGITAL: FT-Slottechnik SCD2022 is listed as a compatible conversion
- Scalextric Digital: Slot.it SP15c1 is listed as a compatible conversion
Performance & Tuning

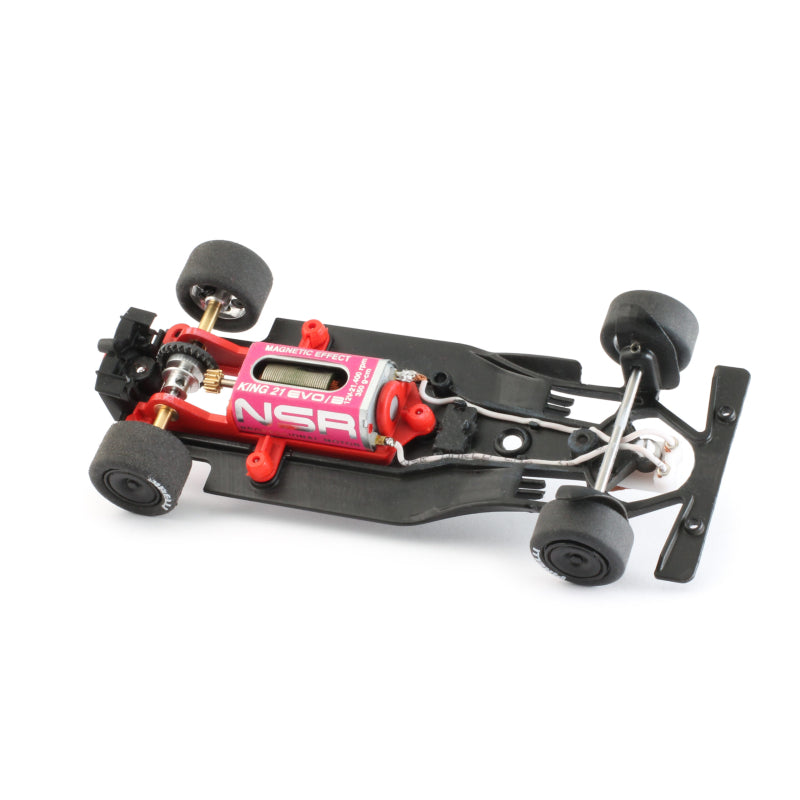

The Formula 22/26 was engineered by NSR specifically around adjustability and track performance. The chassis, motor mount, front axle height and body position can all be tuned, making this platform particularly attractive to serious slot racers.
The aluminium Air System rear wheels and NSR performance tyres provide a strong foundation for racing, while the King EVO3 motor gives the car substantial speed, braking and torque for an inline Formula configuration.
