NSR 0564IL Formula 22/26 Rosso Fuoco #55 Carlos Sainz (1/32) Slot Car
NSR 0564IL Formula 22/26 Rosso Fuoco #55 Carlos Sainz (1/32) Slot Car
SKU:0564IL
Low stock: 1 left
Couldn't load pickup availability
NSR 0564IL Formula 22/26 Rosso Fuoco #55 Carlos Sainz (1/32) Slot Car

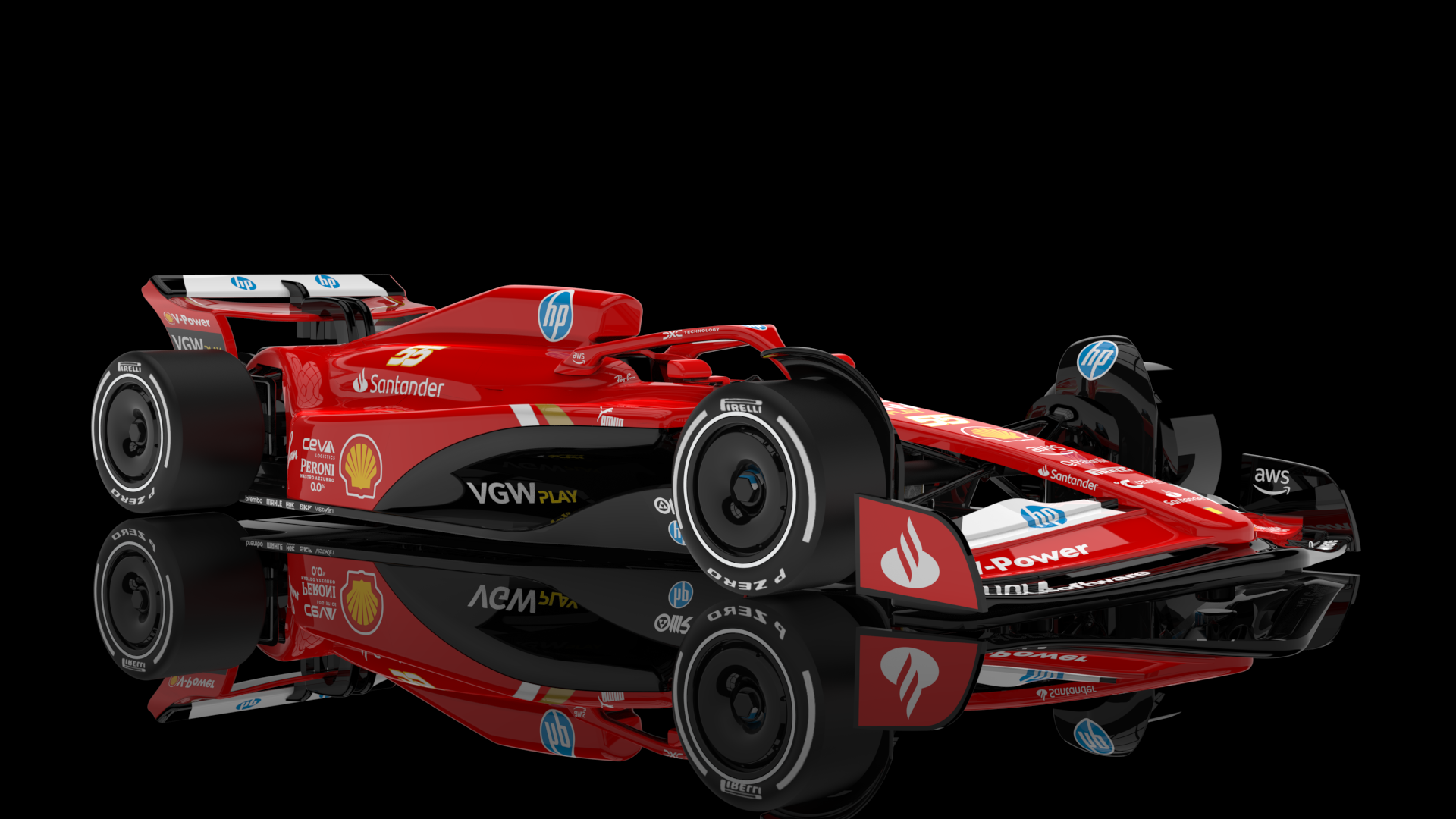

The NSR 0564IL Formula 22/26 Rosso Fuoco #55 brings NSR's high-performance modern Formula platform to the track in a striking Ferrari-inspired Rosso Fuoco livery carrying Carlos Sainz Jr.'s #55.
The Formula 22/26 is NSR's own generic modern Formula design, inspired by Formula 1 cars of the 2022–2026 era rather than being an exact reproduction of a single full-size chassis. The 0564IL represents the 2024 Ferrari SF-24 #55 driven by Sainz during the 2024 Formula 1 season.
Underneath the detailed body is a competition-focused NSR chassis featuring the King EVO3 21K motor, inline drive, aluminium Air System rear wheels, adjustable front axle height and an adjustable motor pod. It is supplied ready for analogue racing and provides extensive scope for further NSR tuning.
Key Features
- NSR 0564IL Formula 22/26
- Rosso Fuoco #55 livery
- Carlos Sainz Jr. / Ferrari-inspired 2024 livery
- (1/32) scale
- 2025 production
- Inline motor configuration
- Rear-wheel drive
- NSR King EVO3 21K motor
- 21,400 rpm motor specification
- 10T / 27T gearing
- 2.70:1 overall gear ratio
- Aluminium front and rear wheels
- Rear aluminium Air System wheels
- Rubber racing tyres
- Adjustable front axle ride height
- Adjustable motor-pod mounting
- Heat-treated steel axles
- Machined self-lubricating bronze bushings
- No lighting
- No suspension fitted as standard
- Analogue operation
- Digital conversion possible

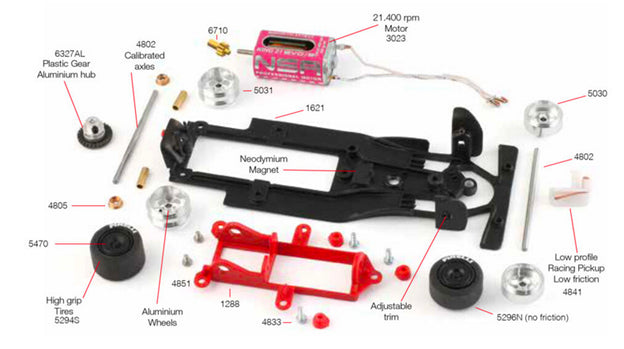

Specifications & Fitted Components
| Component | Description / Specification | NSR Product Code |
|---|---|---|
| Body | Formula 22/26 body, Rosso Fuoco #55 livery | 1550 |
| Chassis | Formula 22/26 medium black chassis | 1621 |
| Motor | King EVO3, 21,400 rpm, 350 g·cm, long-can | 3023 |
| Pinion | 10-tooth inline pinion | Not separately verified for 0564IL |
| Crown Gear | 27-tooth 3/32" inline aluminium gear | 6327AL |
| Front Wheels | Aluminium Formula 22/26 wheels, Ø16.5 mm | 5030 |
| Rear Wheels | Aluminium Air System wheels, Ø16.5 mm | 5031 |
| Front Tyres | 19.5 × 9.5 mm No Friction compound | 5296N |
| Rear Tyres | 19.5 × 13 mm Supergrip compound | 5294S |
| Axles | 3/32" hard-steel axle, 54 mm reference | 4802 |
| Rear Bushings | 3/32" self-lubricating NSR box-stock bushings | 4805 |
| Guide | Box-stock NSR low-profile racing guide | 4841 |
| Pick-up Braids | Super Racing copper braid | 4822 |
| Wheel Inserts | Black Formula 22/26 inserts | 5470 |
| Motor Screws | M2 × 3 mm long-can motor screws | 4851 |
| Body Screws | 2.2 × 6.5 mm standard NSR screws | 4833 |
Important: NSR's public model-specific parts listing confirms the 1550 body, 1621 chassis, 3023 motor, 6327AL crown, 4802 axle, 4805 bushings and 4822 braids for 0564IL. The remaining component references above are based on NSR's Formula 22/26 box-stock configuration and official 2025 parts catalogue; where NSR does not publish a 0564IL-specific fitted reference, it is explicitly identified rather than presented as a model-specific SKU.
Gear Ratio
| Gear | Specification |
|---|---|
| Pinion | 10T |
| Crown | 27T |
| Overall Ratio | 2.70:1 |
Technical Specifications
| Manufacturer | NSR |
| Product Code | 0564IL |
| EAN | 5056397800070 |
| Model | Formula 22/26 Rosso Fuoco #55 |
| Driver | Carlos Sainz Jr. |
| Team / Livery | Scuderia Ferrari / Rosso Fuoco |
| Race Year | 2024 |
| Scale | (1/32) |
| System | Analogue |
| Motor Position | Inline |
| Drive | Rear-wheel drive |
| Motor | NSR King EVO3 |
| Motor Speed | 21,400 rpm |
| Motor Torque | 350 g·cm |
| Gearing | 10T / 27T |
| Gear Ratio | 2.70:1 |
| Magnet | No factory traction magnet |
| Lighting | No |
| Suspension | No |
| Length | 155 mm |
| Height | 24 mm |
| Wheelbase | 100 mm |
| Front Track | 67 mm |
| Rear Track | 67 mm |
| Weight | 76 g |
| Production Year | 2025 |
Digital Conversion
The NSR 0564IL is supplied as an analogue slot car. Digital conversion is possible, but no decoder is installed as supplied.
- Carrera DIGITAL: FT-Slottechnik SCD2022 conversion
- Scalextric Digital: Slot.it SP15c1 conversion
Performance & Tuning
The Formula 22/26 platform was designed by NSR with adjustability in mind. Front axle height, chassis stiffness, motor-pod configuration, body height and suspension characteristics can all be tuned using the appropriate NSR components.
The combination of the King EVO3 motor, 10:27 gearing, aluminium wheels and competition rubber makes the 0564IL a serious performance-oriented Formula car straight out of the box, while its adjustable chassis gives experienced racers plenty of scope for further optimisation.
