NSR 0623AW Chevrolet Corvette C8.R #4 Sebring 12H 2021 1:32 Slot Car
NSR 0623AW Chevrolet Corvette C8.R #4 Sebring 12H 2021 1:32 Slot Car
SKU:0623AW
Low stock: 1 left
Couldn't load pickup availability
NSR 0623AW Chevrolet Corvette C8.R #4 Sebring 12H 2021 1:32 Slot Car
The NSR Chevrolet Corvette C8.R represents the pinnacle of 1:32 scale slot car performance, pushing the boundaries of cutting-edge technology and engineering. This highly anticipated GT3 model has been developed through extensive research and development to maximize track performance. Featuring a meticulously engineered body with minimal thickness for a lower center of gravity, the C8.R boasts optimized body torsion and a reinforced rear wing. This creates an incredibly stable, high-grip contender ready to dominate the track right out of the box.
Race History

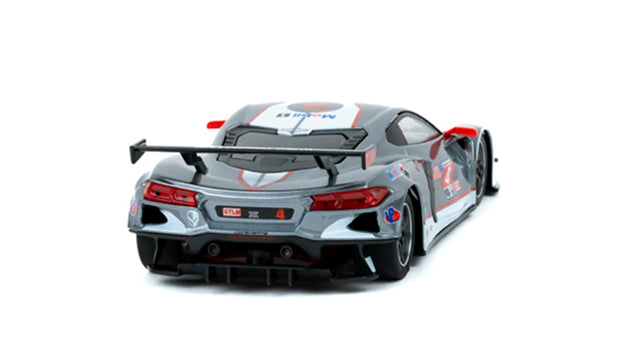

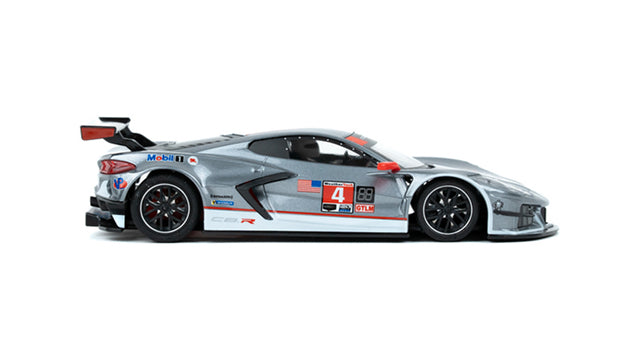

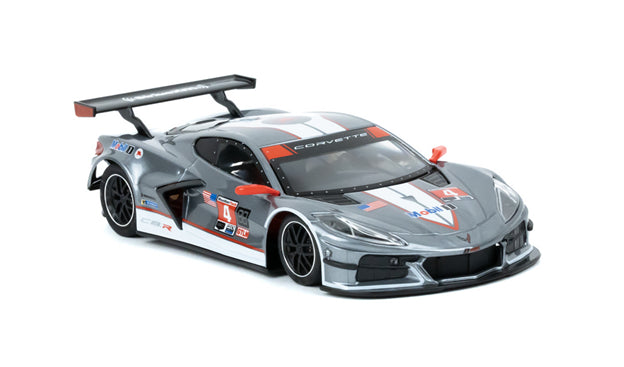

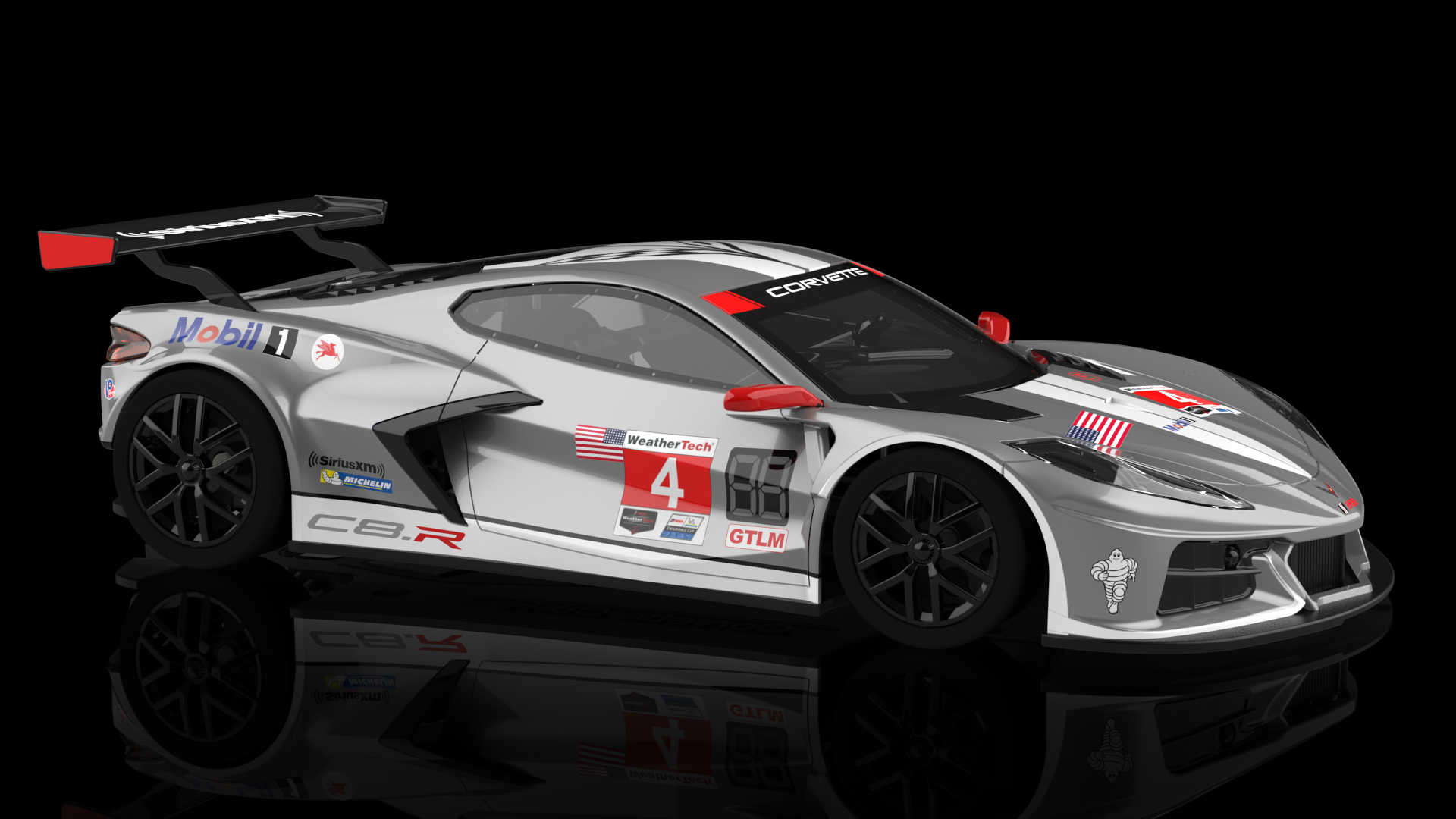

This striking NSR 0623AW model faithfully replicates the alternative #4 Corvette C8.R fielded by Corvette Racing during the 2021 Mobil 1 Twelve Hours of Sebring. Piloted by the expert team of Tommy Milner, Nick Tandy, and Alexander Sims, the #4 machine put up a fierce fight in the fiercely competitive GTLM endurance ranks. Sporting the iconic silver-grey livery accented with striking highlights, this model captures the aggressive aesthetic and track pedigree of the mid-engine Corvette racing program.
Key Features
- High-Performance Anglewinder Setup: Equipped with the potent King 21K EVO/3 motor, delivering an impressive 21,400 RPM and massive torque at 12V with magnetic downforce effects.
- Lightweight Construction: Features an ultra-thin, high-detail body weighing just 19.1g, significantly lowering the center of gravity for supreme cornering stability.
- Precision Engineering: Fitted with NSR's signature aluminum "Air System" wheels, calibrated axles, and ultra-smooth machined bronze bushings.
- Track-Ready Grip: Supplied with soft Supergrip compound rear tires for exceptional traction, paired with low-friction hard front tires.
- Adjustable Handling: Fully height-adjustable front axle via M2 set screws to fine-tune the ride height to any track surface.

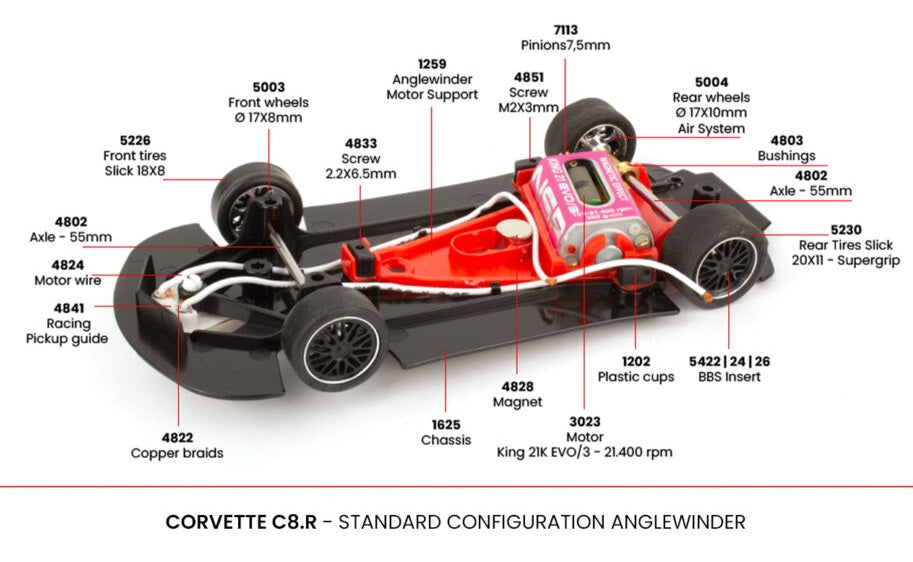

Technical Specifications
| SKU | 0623AW |
| Barcode | Not Listed by Manufacturer |
| Scale | 1:32 |
| Car Type | GT3 / GTLM |
| Body Weight | 19.1g (High-detail, lightweight plastic) |
| Chassis | NSR 1625 Chassis Corvette C8.R - Medium |
| Motor | King 21K EVO/3 Magnetic Effect 21,400 RPM @ 12V (Part: NSR 3023) |
| Motor Configuration | Anglewinder |
| Motor Mount | Anglewinder EVO5 Triangular Extra Hard (Part: NSR 1259) |
| Drive | Rear wheels |
| Gear Ratio | 13:31 — 13T Brass Pinion (Part: NSR 7113) / 31T Aluminium Spur (Part: NSR 6531) |
| Rear Suspension | Adjustable Motor Pod (Suspension kits available separately) |
| Guide | Low Profile Racing Pickup (Part: NSR 4841) |
| Axles | Hard Steel 2.38mm (3/32") x 55mm (Part: NSR 4802) |
| Front Wheels/Hubs | Aluminum 17x8mm (Part: NSR 5003) |
| Rear Wheels/Hubs | Aluminum Air System 17x10mm (Part: NSR 5004) |
| Front Tyres | Hard / No-Friction Low Profile 18.5x8.5mm (Part: NSR 5226EVO) |
| Rear Tyres | Supergrip soft compound rubber 19.5x11mm (Part: NSR 5230EVO) |
| Bearings / Bushes | Machined Bronze Self-Lubricating (Part: NSR 4803) |
| Magnet | Yes, Super Neodymium round (Part: NSR 4828) |
| Lights | No |
| Digital Compatibility | Analog system. Can be converted using universal micro-chips (e.g., Slot.it SP15c1) with soldering. Not plug-and-play DPR. |
| Spares Included | Allen key for set-screw wheels/gears |
Genuine NSR professional slot car product. W.A.R. Raceway is an authorised Australian retailer.
