NSR 3022 King 21K EVO/2 Magnetic Effect Long Can Motor 21,400 RPM
NSR 3022 King 21K EVO/2 Magnetic Effect Long Can Motor 21,400 RPM
SKU:3022
Low stock: 4 left
Couldn't load pickup availability

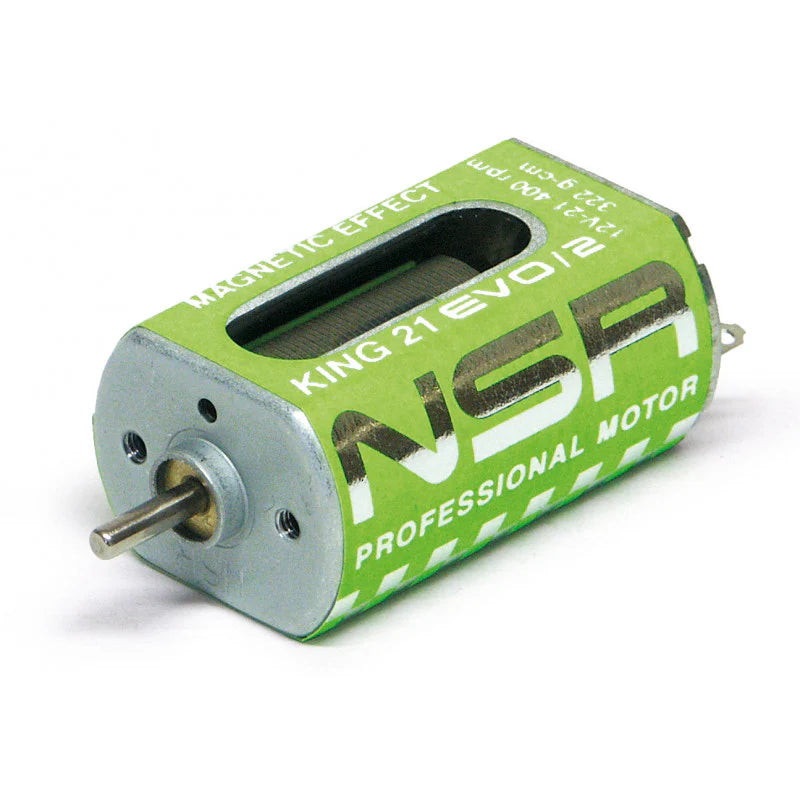

NSR 3022 King 21K EVO/2 Magnetic Effect Long Can Motor
The NSR 3022 King 21K EVO/2 is a high-performance long-can slot car motor designed for competitive racing. It delivers 21,400 RPM and 322 g·cm of torque at 12V and features NSR's magnetic-effect motor construction for additional downforce.
The 3022 is the bare-motor version. It does not include motor wires or a pinion gear, allowing the motor to be configured to suit the particular chassis and transmission being used.
Key Features
- Genuine NSR King 21K EVO/2 motor
- NSR part number: 3022
- 21,400 RPM at 12V
- 322 g·cm torque at 12V
- Long-can motor construction
- Magnetic effect
- Dual-sided/open motor construction for improved cooling and serviceability
- Motor shaft suitable for standard NSR pinion installation
- Motor wires and pinion gear not included
Specifications & Components
| Component | Description | NSR Product Code | Specification |
|---|---|---|---|
| Motor | King 21K EVO/2 magnetic-effect long-can motor | 3022 | 21,400 RPM / 322 g·cm @ 12V |
| Motor Type | King EVO/2 long-can racing motor | 3022 | Long can / magnetic effect |
| Pinion Gear | Not supplied with bare motor | — | Not included |
| Motor Wires | Not supplied with bare motor | — | Not included |
3022 vs 3022L vs 3022N
NSR produced the King 21K EVO/2 in several configurations. The standard 3022 is the bare long-can motor. The 3022L adds motor wires and an inline pinion, while the 3022N adds motor wires and an anglewinder pinion intended for Ninco anglewinder applications.
This makes the bare 3022 particularly useful when you want to select the correct pinion and wiring arrangement for your own chassis.
Racing Applications
The King 21K EVO/2 was developed as a performance NSR racing motor and has been used in competitive NSR applications. Its combination of approximately 21,400 RPM, 322 g·cm torque and magnetic effect provides a strong balance of acceleration, torque and braking for many (1/32) racing applications.
Important Note
The 3022 should not be confused with the later 3023 King 21K EVO/3. Both are rated at 21,400 RPM, but the 3022 is the EVO/2 specification with 322 g·cm torque, whereas the 3023 EVO/3 is rated at 350 g·cm.
