Policar
Policar CAR07-YELLOW Monoposto Modern F1 Yellow (1/32) Slot Car
Policar CAR07-YELLOW Monoposto Modern F1 Yellow (1/32) Slot Car
SKU:CAR07-YELLOW
Low stock: 2 left
Couldn't load pickup availability
Policar CAR07-YELLOW Monoposto Modern F1 – Yellow
The Policar CAR07-YELLOW Monoposto is a highly detailed generic single-seater racing car designed as a modern interpretation of a Formula 1-style monoposto. Finished in a bright yellow body, it is supplied as a partially assembled model, allowing the final body details to be fitted while retaining the flexibility to customise the car with your own decals and livery.
Developed by Policar and Slot.it, the Monoposto combines realistic F1-inspired appearance with serious slot-racing engineering. The car uses Policar's high-performance DFV-25K motor, inline drivetrain, bevel-gear transmission and a dedicated Monoposto chassis. A second, digital-ready chassis configuration is also included, making the CAR07 platform particularly versatile for racers and modellers.

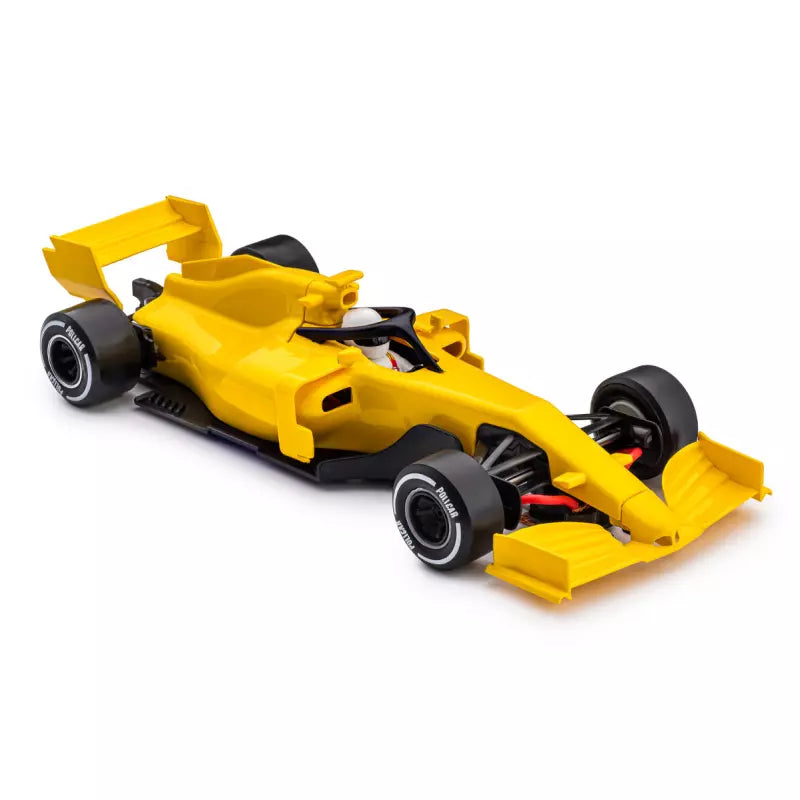

Policar Monoposto – Yellow Body
The CAR07-YELLOW is deliberately supplied as a generic racing car rather than representing a specific historical Formula 1 team or driver. Policar describes the Monoposto range as a tribute to the cars, drivers and stories of Formula 1, while allowing enthusiasts to create their own liveries and interpretations.
The yellow body is factory painted and can be raced as supplied or further customised with additional decals. The model is supplied partially assembled with the driver, halo and aerodynamic components requiring final assembly.
Key Features
- Policar CAR07-YELLOW Monoposto F1
- Generic modern F1-style single-seater
- Yellow painted body
- (1/32) scale
- Partially assembled model
- Digital-ready chassis included
- Inline motor configuration
- Policar PMX01 F1 DFV-25K motor
- 24,500 rpm
- 95 g·cm torque specification
- Rear-wheel drive
- No traction magnet fitted
- No lighting
- No suspension
- 9T pinion
- 25/16T intermediate bevel gearing
- 17T rear axle gear
- Front C1 compound tyres
- Rear C1 compound tyres
- Copper pick-up braids
- Optional magnetic front-wing clip system
- Compatible with Slot.it SP43 Carrera DIGITAL conversion
- Compatible with Slot.it SP15c1 Scalextric Digital conversion
- Clear plastic display case
Specifications & Fitted Components
| Component | Specification / Description | Manufacturer Product Code |
|---|---|---|
| Body | Yellow painted Policar Monoposto generic modern F1-style body | PCS07b |
| Chassis | Policar Monoposto Type C / digital-ready chassis | PCS07t2a |
| Motor | F1 DFV-25K, 24,500 rpm, 95 g·cm | PMX01 |
| Motor Mount | Inline F1 motor mount | Model-specific mount; exact fitted PCH reference not independently verified |
| Motor Fixing Screws | M1.4 × 2.5 mm | PCH04 |
| Pinion | 9-tooth conical plastic pinion, 1.5 mm bore | PPI429o15-bg |
| Intermediate Gear | 25/16-tooth plastic bevel gear assembly with axle and spacer | PGI2516-bg |
| Rear Axle / Spur Gear | 51 mm axle with pre-assembled 17-tooth steel gear | PGS8017 |
| Front Axle | 51 mm axle, 3/32 inch diameter | PA01-51 |
| Front Wheels | Plastic F1 wheels, Ø13.8 × 10.5 mm | PW13810504P |
| Front Tyres | C1 compound F1 front tyres for Ø13.8 mm wheels | PPT1354C1 |
| Rear Wheels | Aluminium F1 rear wheels, Ø13.8 × 13.5 mm, M2 grub screw | PW13813519A |
| Rear Tyres | C1 compound F1 rear slicks for Ø13.8 mm wheels | PPT1224C1 |
| Guide | Clip-in racing pick-up guide | CH66 |
| Pick-up Braids | Competition copper braid | SP19 |
| Body Screws | M2 × 5 mm brass metric screws | PCH07 |
| Body / Chassis Fasteners | M2 hexagonal screws | PA40 |
| Motor Bushings | Set of four motor-mount bushings | PPA01 |
| Axle Stopper | F1 axle stopper with M2 × 2 mm hex screw | PPA02 |
| Front Wing Clip | Optional magnetic front-wing clip system; magnets not included | PCS07p1 / CN10 or CN12 magnets optional |
Gear Train
| Gear Stage | Specification | Product Code |
|---|---|---|
| Z1 – Motor Pinion | 9T conical plastic pinion | PPI429o15-bg |
| Z2 – Intermediate Gear | 25/16T plastic bevel gear | PGI2516-bg |
| Z3 – Rear Axle Gear | 17T steel spur gear | PGS8017 |
The standard production drivetrain therefore uses 9T → 25/16T → 17T gearing. Policar's technical documentation identifies the 25/16-tooth intermediate gear and 17-tooth rear axle combination as the standard production gearing for this Monoposto platform, giving an overall reduction ratio of approximately 2.94:1. :contentReference[oaicite:0]{index=0}
Technical Specifications
| Manufacturer | Policar / Slot.it |
| Product Code | CAR07-YELLOW |
| UPC / EAN | 8058773085108 |
| Model | Monoposto F1 – Yellow |
| Scale | (1/32) |
| System | Analogue |
| Drive | Rear-wheel drive |
| Motor Configuration | Inline |
| Motor | Policar PMX01 F1 DFV-25K |
| Motor Speed | 24,500 rpm |
| Motor Torque | 95 g·cm |
| Gear Train | 9T / 25-16T / 17T |
| Overall Gear Ratio | Approximately 2.94:1 |
| Magnet | None fitted |
| Lighting | None |
| Suspension | None |
| Length | 167 mm |
| Height | 32.5 mm |
| Wheelbase | 108 mm |
| Width / Axle Track | 60 mm |
| Weight | 58 g |
| Production Year | 2022 |
| Limited Edition | No limited-edition designation or production quantity verified |
Note on dimensions: Policar's general Monoposto documentation gives approximately 155 × 35 mm with a 67 mm track and 62 g for the platform, while the CAR07-YELLOW-specific product data lists 167 × 32.5 mm, 108 mm wheelbase, 60 mm width and 58 g. The figures above use the CAR07-YELLOW-specific data rather than the generic platform figures. :contentReference[oaicite:1]{index=1}
What's Included
- 1 × Policar CAR07-YELLOW Monoposto
- Partially assembled yellow painted body
- Driver and cockpit components
- Halo / aerodynamic components
- Digital-ready chassis
- Decal sheet for driver's helmet screen, dashboard and seat belts
- Clear plastic display box
Digital Conversion
The CAR07 Monoposto platform is designed with digital conversion in mind. The CAR07-YELLOW is compatible with the Slot.it SP43 for Carrera DIGITAL systems and the Slot.it SP15c1 for Scalextric Digital systems. The model is supplied without a digital decoder installed.
Front Wing Magnetic Protection
The Monoposto features a detachable front-wing attachment designed to help protect the wing during racing. An optional magnetic front-wing system can be fitted using compatible CN10 or CN12 magnets. The magnets are not included with the CAR07-YELLOW.
