Professor Motor PMTR1532 Slimline FK-050SH Motor – 35,000 RPM

Professor Motor PMTR1532 Slimline FK-050SH Motor – 35,000 RPM

PMTR1532

$24.50 AUD
$25.00 AUD $24.50 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

W.A.R. Slot Car Raceway is Australia's specialist slot car parts store.

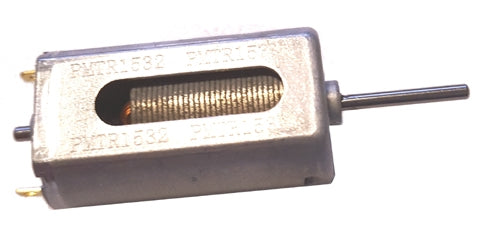

Professor Motor PMTR1532 Slimline FK-050SH Motor – 35,000 RPM

The Professor Motor PMTR1532 Slimline is a high-performance FK-050SH slot car motor designed for applications requiring a compact motor with impressive rotational speed and torque. Rated at 35,000 RPM at 12 V DC, it combines neodymium magnets, carbon motor brushes and a precision 1.5 mm motor shaft.

Slimline FK-050SH Performance

With a maximum torque rating of 150 gm-cm, the PMTR1532 delivers a combination of high rotational speed and useful torque. Its compact FK-050SH configuration makes it an option for specialised slot car chassis and installations designed around this motor format.

Neodymium Magnets & Carbon Brushes

The motor uses high-strength neodymium magnets and carbon motor brushes. These components contribute to its high-performance characteristics and make it a suitable option for racers seeking an alternative to conventional lower-speed motor configurations.

Key Features

  • Genuine Professor Motor Slimline motor
  • FK-050SH motor configuration
  • 35,000 RPM at 12 V DC
  • 150 gm-cm maximum torque
  • Neodymium magnets
  • Carbon motor brushes
  • 1.5 mm motor shaft
  • Laser-etched part number on motor can
  • Preferred clockwise rotation when viewed from the can end
  • 6.5 A stall current
  • 0.3 A no-load current

Technical Specifications

Brand Professor Motor
Part Number PMTR1532
Motor Name Slimline
Motor Type FK-050SH
Rated Speed 35,000 RPM at 12 V
Maximum Torque 150 gm-cm
Magnets Neodymium
Brushes Carbon
Shaft Diameter 1.5 mm
Stall Current 6.5 A
No-Load Current 0.3 A
Preferred Rotation Clockwise, viewed from can end
Release Date 3 May 2017

Compatibility & Installation

The PMTR1532 is an FK-050SH-format motor. Before installation, check the chassis motor pocket, mounting arrangement, shaft diameter and available clearance. Its 1.5 mm shaft requires a compatible pinion; standard 2 mm motor-shaft pinions are not suitable.

Also consider the electrical requirements when selecting a power supply and controller. The motor's published stall current is 6.5 A, so the electrical system should be appropriately rated for the application.

What's Included

1 × Professor Motor PMTR1532 Slimline FK-050SH 35,000 RPM motor.
