RevoSlot RS211 21,000 RPM Short-Can Motor with Wires 200g·cm (1/32)
RevoSlot RS211 21,000 RPM Short-Can Motor with Wires 200g·cm (1/32)
SKU:RS211
21 in stock
Couldn't load pickup availability
RevoSlot RS211 21,000 RPM Short-Can Motor with Wires 200g·cm (1/32)

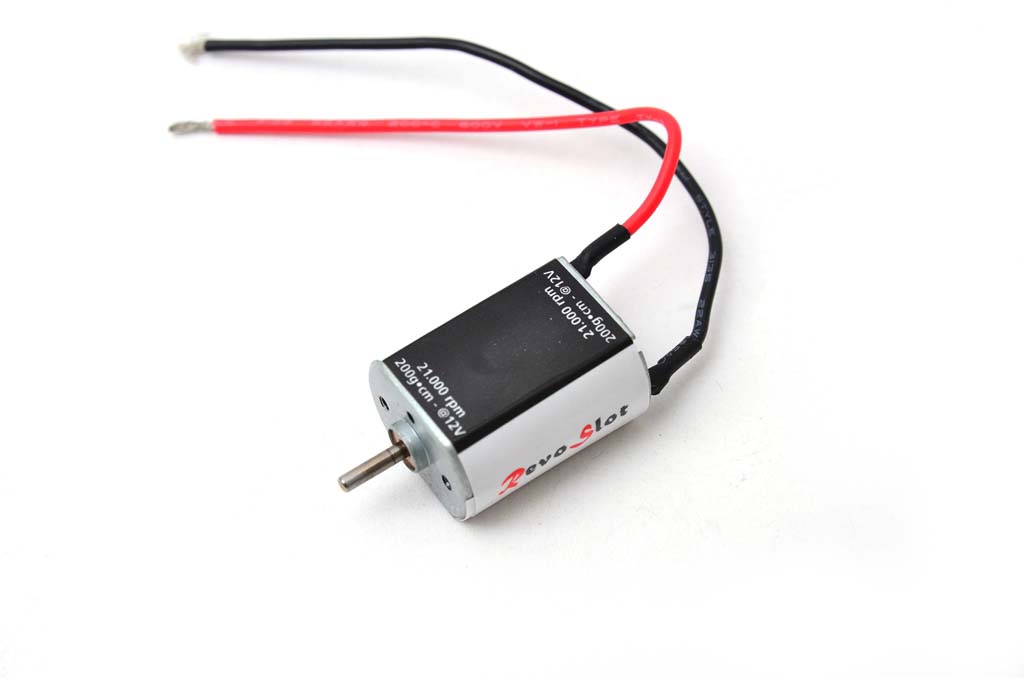

The RevoSlot RS211 is the standard RevoSlot short-can racing motor, producing 21,000 RPM at 12V with 200 g·cm of torque. It is the original motor specified for RevoSlot's range of high-performance (1/32) slot cars.
The RS211 uses a compact FC-130 / Mabuchi-style short-can motor with a 2mm motor shaft. This version is supplied with motor wires and is designed as a direct replacement motor for RevoSlot cars and compatible applications.
Key Features
- Genuine RevoSlot replacement motor
- RevoSlot product code: RS211
- 21,000 RPM at 12V
- 200 g·cm torque at 12V
- Short-can FC-130 / Mabuchi-style motor
- 2mm diameter motor shaft
- 8mm shaft length
- Supplied with motor wires
- Standard original motor for RevoSlot (1/32) cars
- Suitable for anglewinder RevoSlot applications
Specifications & Components
| Component | Description | Product Code | Specification |
|---|---|---|---|
| Motor | RevoSlot short-can racing motor | RS211 | 21,000 RPM @ 12V / 200 g·cm @ 12V |
| Motor Type | Short-can FC-130 / Mabuchi style | RS211 | Short can |
| Motor Shaft | Drive shaft | RS211 | Ø2mm × 8mm |
| Motor Wires | Motor lead wires | Included with RS211 | Factory-fitted wires |
Compatibility & Gearing
The RS211 is the standard RevoSlot motor used across the manufacturer's (1/32) range. RevoSlot's standard anglewinder transmission commonly uses the RS212 12T pinion with an appropriate RevoSlot spur gear.
For example, RevoSlot documentation lists the RS212 12T pinion and S-419 33T spur gear as the standard transmission components on applicable models, giving a 12:33 ratio.
Important: the RS211 motor itself does not include the RS212 pinion. The motor is supplied with its wires; the pinion must be fitted separately unless purchasing a specific motor-and-pinion variant.
What's Included?
- 1 × RevoSlot RS211 21,000 RPM short-can motor
- Factory-fitted motor wires
