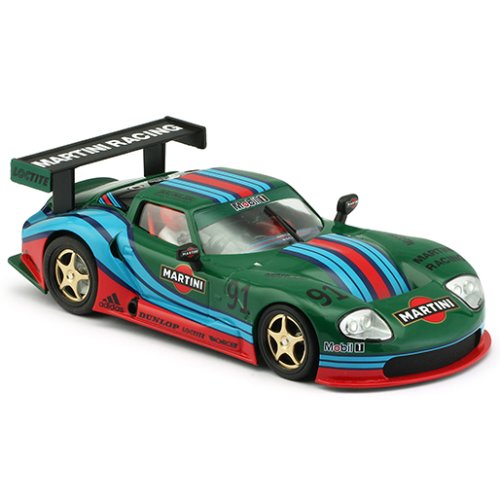

RevoSlot RS0073 Marcos LM600 GT2 #91 Martini Green – 1/32 Slot Car
RevoSlot RS0073 Marcos LM600 GT2 #91 Martini Green – 1/32 Slot Car
SKU:RS0073
Out of stock
Couldn't load pickup availability
W.A.R. Slot Car Raceway is Australia's specialist slot car parts store.
The RevoSlot RS0073 Marcos LM600 GT2 #91 combines the distinctive Martini green livery with the serious mechanical specification that makes RevoSlot cars popular with competitive slot racers. This 1/32 scale model features a CNC-machined aluminium chassis, adjustable floating body mounting, aluminium wheels and motor mount, and ball bearings on both axles.
Designed for enthusiasts who value both scale appearance and tunable performance, the RS0073 arrives ready to run in analogue form, with additional components supplied to help tailor it to different track configurations.
Marcos LM600 GT2 – #91 Martini Green
The Marcos LM600 was developed as a GT endurance-racing machine, combining the distinctive low-slung Marcos body shape with a front-engined, rear-wheel-drive layout. The RS0073 recreates the #91 car in its striking green Martini colour scheme, making it a distinctive addition to a GT racing grid or a collection of specialist endurance cars.
Competition-Ready Mechanical Specification
The RS0073's strength lies in its adjustable mechanical platform. Rather than relying on a basic plastic chassis, RevoSlot uses a floating aluminium chassis arrangement with separate aluminium motor and axle carriers. This provides racers with useful options for adjusting the relationship between the chassis and body to suit their preferred handling characteristics.
- CNC-machined aluminium chassis with adjustable floating body mount
- 21,000 rpm FK130 motor
- Anglewinder drivetrain with rear-wheel drive
- 12-tooth brass pinion and 33-tooth nylon spur gear with aluminium hub
- 3mm calibrated hardened steel axles
- Front and rear ball bearings
- Aluminium front and rear wheels secured with M3 screws
- Aluminium motor mount and axle carriers
- Brass chassis-floating nuts and axle spacers
- Spring-loaded swivel guide
- Additional deep guide blade for routed wooden tracks
- Traction magnet supplied separately, not fitted
- Spare rear wing supplied
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | RevoSlot |
| Product code | RS0073 |
| Vehicle | Marcos LM600 GT2 |
| Race number | #91 |
| Livery | Martini green |
| Scale | 1/32 |
| Chassis | CNC-machined aluminium, adjustable floating design |
| Motor | RevoSlot FK130, 21,000 rpm, approximately 200 g·cm torque at 12V (manufacturer/retailer specification) |
| Motor configuration | Anglewinder |
| Drive | Rear-wheel drive |
| Pinion | 12-tooth brass |
| Spur gear | 33-tooth nylon, aluminium hub |
| Final-drive ratio | 12:33 (2.75:1) |
| Axles | 3mm calibrated hardened steel |
| Bearings | Front and rear ball bearings |
| Wheels | Aluminium, 14.7 × 9.3mm front and rear |
| Front tyres | Approximately 20 × 9mm, low-profile |
| Rear tyres | Approximately 21 × 9.5mm, high-grip |
| Front axle / hub width | Approximately 58mm |
| Rear axle / hub width | Approximately 62mm |
| Overall length | Approximately 135mm |
| Width | Approximately 64mm |
| Height | Approximately 35mm |
| Weight | Approximately 98g |
| Guide | Spring-loaded swivel guide; standard blade fitted, deep wooden-track guide supplied |
| Magnet | Rectangular traction magnet supplied, not fitted |
| Lighting | Not fitted |
| Digital operation | Analogue as supplied; digital conversion may be possible with suitable compatible components |
Understanding the 12:33 Gear Ratio
The standard 12-tooth pinion and 33-tooth spur gear give the RS0073 a 2.75:1 final-drive ratio. This is calculated by dividing the spur-gear tooth count by the pinion tooth count: 33 ÷ 12 = 2.75.
For racers, the final-drive ratio is only one part of the setup. Motor characteristics, tyre diameter, track grip, corner density and braking requirements all influence how the car behaves. Retaining the standard gearing provides a useful starting point before making changes for a particular circuit or racing class.
Adjustable Chassis and Setup
The floating chassis and adjustable body mounting allow the racer to tune how the body interacts with the chassis during cornering. The aluminium motor mount and axle carriers provide a rigid mechanical foundation, while the brass adjustment hardware and spacers assist with setting clearances and alignment.
Before running, check that both axles turn freely, the gear mesh is smooth, the wheels run true and the tyres clear the bodywork. Adjust the body float carefully and ensure the chassis does not bind against the body screws or mounting points.
Track Compatibility
The RS0073 is an analogue 1/32 scale slot car. It is suitable for compatible analogue slot car circuits. The included deep guide blade provides an additional option for routed wooden tracks, where a deeper guide may be needed to suit the slot dimensions.
The traction magnet is supplied loose rather than installed, allowing the owner to choose whether to use it, subject to the rules of the intended track or racing class. Digital operation requires a suitable conversion solution and should be checked for compatibility before purchase.
What's Included
- 1 × RevoSlot RS0073 Marcos LM600 GT2 #91 Martini green slot car
- 1 × Rectangular traction magnet, not fitted
- 1 × Additional deep guide blade for routed wooden tracks
- 1 × Spare rear wing
- Parts sheet
Why Buy From W.A.R. Slot Car Raceway?
W.A.R. Slot Car Raceway is Australia's specialist slot car parts store. We're a South Australian father-and-son business that races, builds, tunes and maintains slot cars ourselves.
RevoSlot's aluminium chassis, adjustable body mounting, ball-bearing axles and replaceable mechanical components make the RS0073 a compelling choice for racers who enjoy setting up their cars rather than simply running them straight out of the box.
Add the RevoSlot RS0073 Marcos LM600 GT2 #91 to your grid for distinctive Martini styling and a serious, tuneable 1/32 racing platform.
