RevoSlot RS0096 Mercedes-Benz CLK GTR White Kit 1/32 Slot Car

RevoSlot RS0096 Mercedes-Benz CLK GTR White Kit 1/32 Slot Car

RS0096

$95.00 AUD
$99.00 AUD $95.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

RevoSlot RS0096 Mercedes-Benz CLK GTR – White Kit

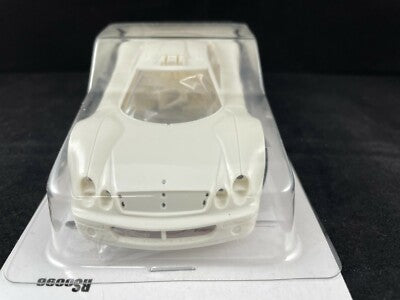

The RevoSlot RS0096 is a 1/32 scale Mercedes-Benz CLK GTR White Kit, supplied with a fully assembled high-performance rolling chassis and an unpainted body ready for your own custom livery.

Developed around RevoSlot's BRM-engineered aluminium racing chassis, the RS0096 combines a floating body mount, adjustable chassis setup, aluminium wheels, precision ball bearings, a spring-loaded guide and RevoSlot's 21,000 rpm motor. The body requires assembly and painting, while the mechanical chassis is supplied fully assembled.

The Mercedes-Benz CLK GTR

The Mercedes-Benz CLK GTR was developed by Mercedes-Benz and AMG for the inaugural FIA GT Championship in 1997. Designed primarily as a competition car, the CLK GTR was subsequently developed into the CLK LM for the 1998 Le Mans programme.

The RS0096 provides the distinctive CLK GTR body in white kit form, allowing builders and racers to create their own race livery rather than being restricted to a factory decoration.

Key Features

  • RevoSlot RS0096 Mercedes-Benz CLK GTR White Kit
  • 1:32 scale
  • White/unpainted body for custom finishing
  • Fully assembled rolling chassis
  • CNC-machined anodised aluminium chassis
  • Floating body mount
  • Rear-mounted anglewinder motor
  • Rear-wheel drive
  • RS211 21,000 rpm motor
  • RS212 12-tooth brass pinion
  • S-419 33-tooth nylon anglewinder crown
  • 12:33 gear ratio
  • Aluminium front and rear wheels
  • 3 mm calibrated hardened steel axles
  • Front and rear ball bearings
  • Spring-loaded swivel guide
  • Standard and deep wood-track guide options
  • No lighting
  • No factory traction magnet
  • Carrera DIGITAL conversion: 20026732
  • Scalextric digital conversion: Slot.it SP15c1

Specifications & Fitted Components

Component Fitted specification RevoSlot / BRM Product Code
Body Mercedes-Benz CLK GTR, unpainted white kit body RS0096
Chassis Anodised CNC aluminium floating chassis Model-specific chassis reference not separately published
Motor 21,000 rpm FK130 short-can motor, 200 gcm @ 12 V RS211
Motor mount Aluminium rear-mounted anglewinder motor holder Exact fitted mount reference not independently verified
Pinion 12-tooth brass anglewinder pinion, Ø6.4 mm RS212
Crown gear 33-tooth nylon anglewinder spur, Ø12.4 mm S-419
Gear ratio 12:33 —
Front wheels Aluminium, 16 × 9 mm RS187
Rear wheels Aluminium, 15.5 × 10.5 mm RS188
Front tyres 21 × 8.9 mm, hard/low-profile compound RS201M
Rear tyres 21.5 × 11 mm, wider full-profile compound RS202W
Front axle Ø3 mm calibrated hardened steel; 50 mm axle width RS209
Rear axle Ø3 mm calibrated hardened steel; 50 mm axle width RS209
Front bearings 3 × 6 mm flanged ball bearings S-410
Rear bearings 3 × 6 mm flanged ball bearings S-410
Standard guide Spring swivel guide, 7 mm depth RS210
Deep wood-track guide 9 mm deep guide supplied as an alternative RS210W
Guide screws Steel guide screws RS210S
Guide springs Guide spring set RS210SP
Body float hardware Brass nuts and screws for floating body adjustment RS208
Body/chassis screws Complete screw set RS213
Wheel inserts Unpainted Mercedes CLK GTR wheel inserts RS166
Lighting Not fitted —
Traction magnet Not fitted as standard; a magnet is supplied separately with the kit —

Technical Specifications

Specification Details
Manufacturer RevoSlot
Product code RS0096
Model Mercedes-Benz CLK GTR
Scale 1:32
Product type White Kit
Body Plastic injected body, unpainted
Chassis CNC-machined anodised aluminium
Chassis type Floating / adjustable
System Analogue
Motor configuration Rear-mounted anglewinder
Drive Rear-wheel drive
Motor RS211, 21,000 rpm, 200 gcm @ 12 V
Pinion RS212, 12T brass, Ø6.4 mm
Crown S-419, 33T nylon, Ø12.4 mm
Gear ratio 12:33
Axle diameter 3 mm
Front axle width 50 mm
Rear axle width 50 mm
Wheelbase 83 mm
Overall length 152 mm
Overall width 65 mm
Overall height 34 mm
Total weight 109 g
Chassis weight 79 g
Body weight 28 g
Front wheels Aluminium, 16 × 9 mm
Rear wheels Aluminium, 15.5 × 10.5 mm
Front tyres RS201M, 21 × 8.9 mm
Rear tyres RS202W, 21.5 × 11 mm
Bearings Front and rear 3 × 6 mm flanged ball bearings
Lighting No
Factory magnet No
Digital conversion Upgradeable
Carrera DIGITAL conversion 20026732
Scalextric digital conversion Slot.it SP15c1

White Kit – Build Your Own Livery

The RS0096 is supplied with the mechanical chassis fully assembled, while the CLK GTR body is supplied unpainted. The kit includes the transparent parts, fins and small accessories required to complete the body. Paint and finishing materials are not included.

This makes the RS0096 particularly suitable for racers and modellers who want to create their own Mercedes CLK GTR livery while retaining RevoSlot's fully developed racing chassis underneath.
