RevoSlot

RevoSlot RS0276 Ferrari 333SP #13 Black Edition Shell – 1/32 Slot Car

RevoSlot RS0276 Ferrari 333SP #13 Black Edition Shell – 1/32 Slot Car

SKU:RS0276

Regular price $81.69 USD
Regular price $85.77 USD Sale price $81.69 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Low stock: 1 left

W.A.R. Slot Car Raceway is Australia's specialist slot car parts store.

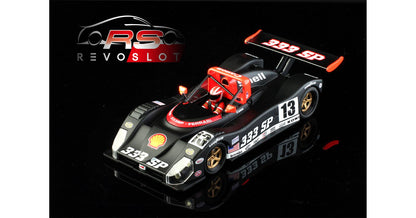

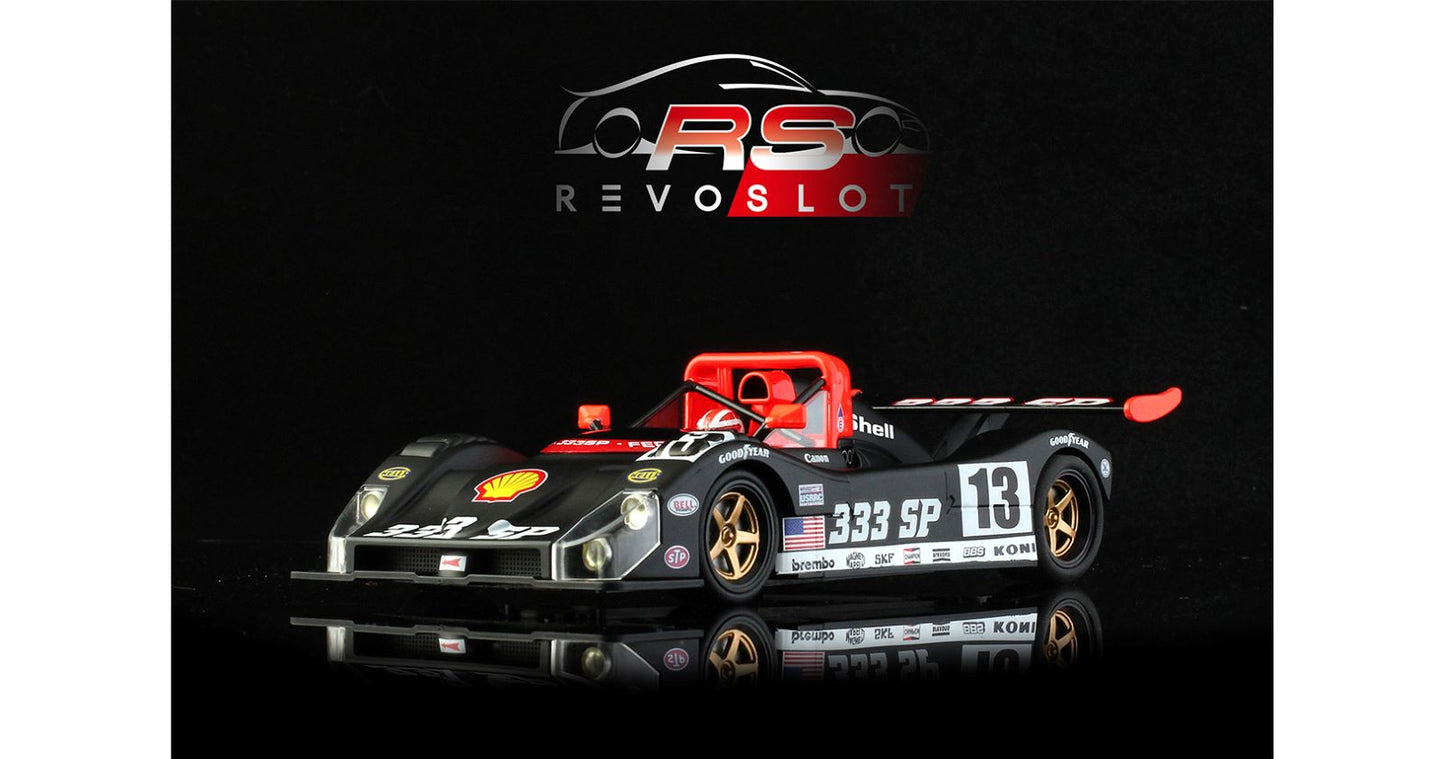

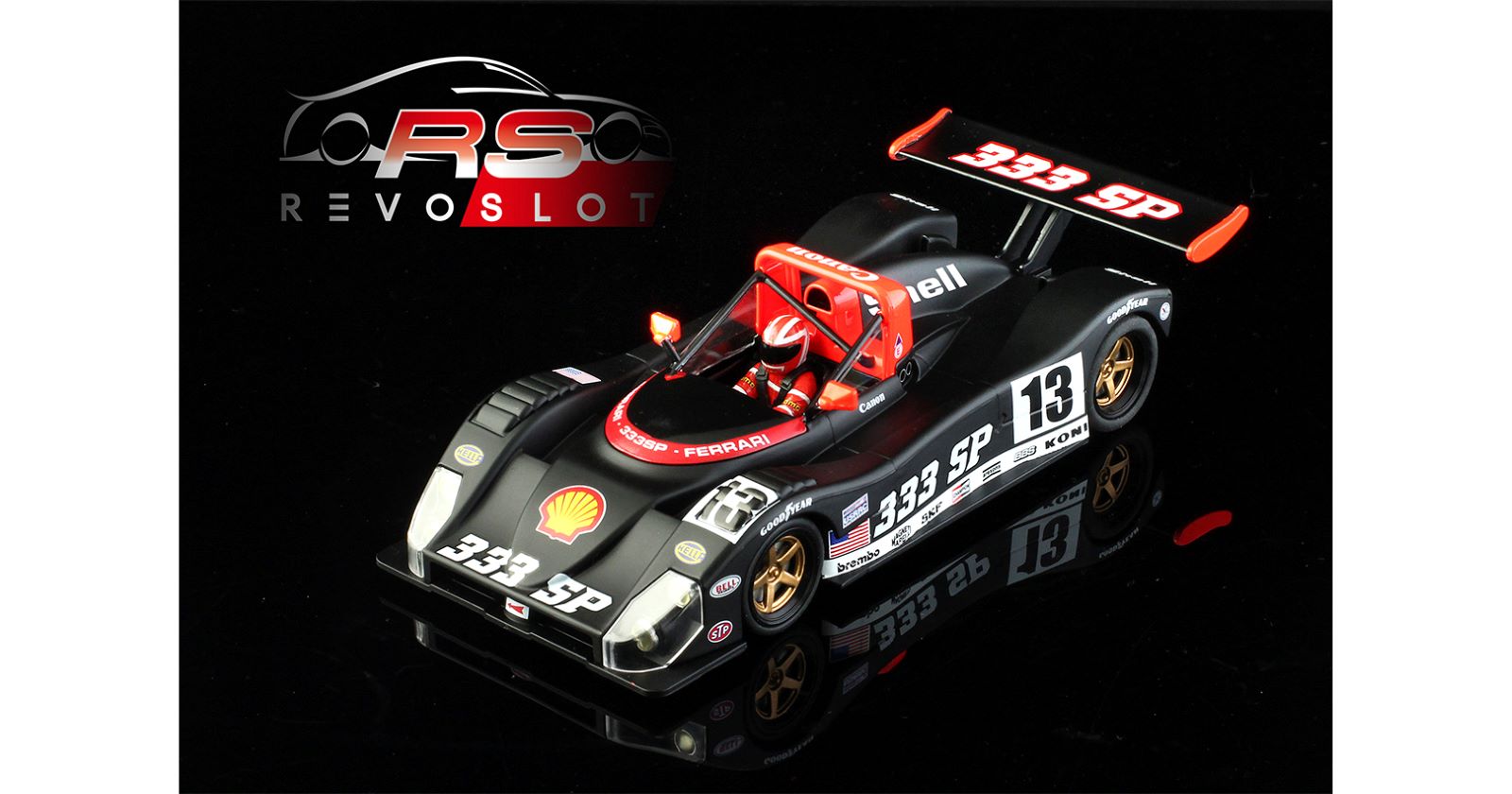

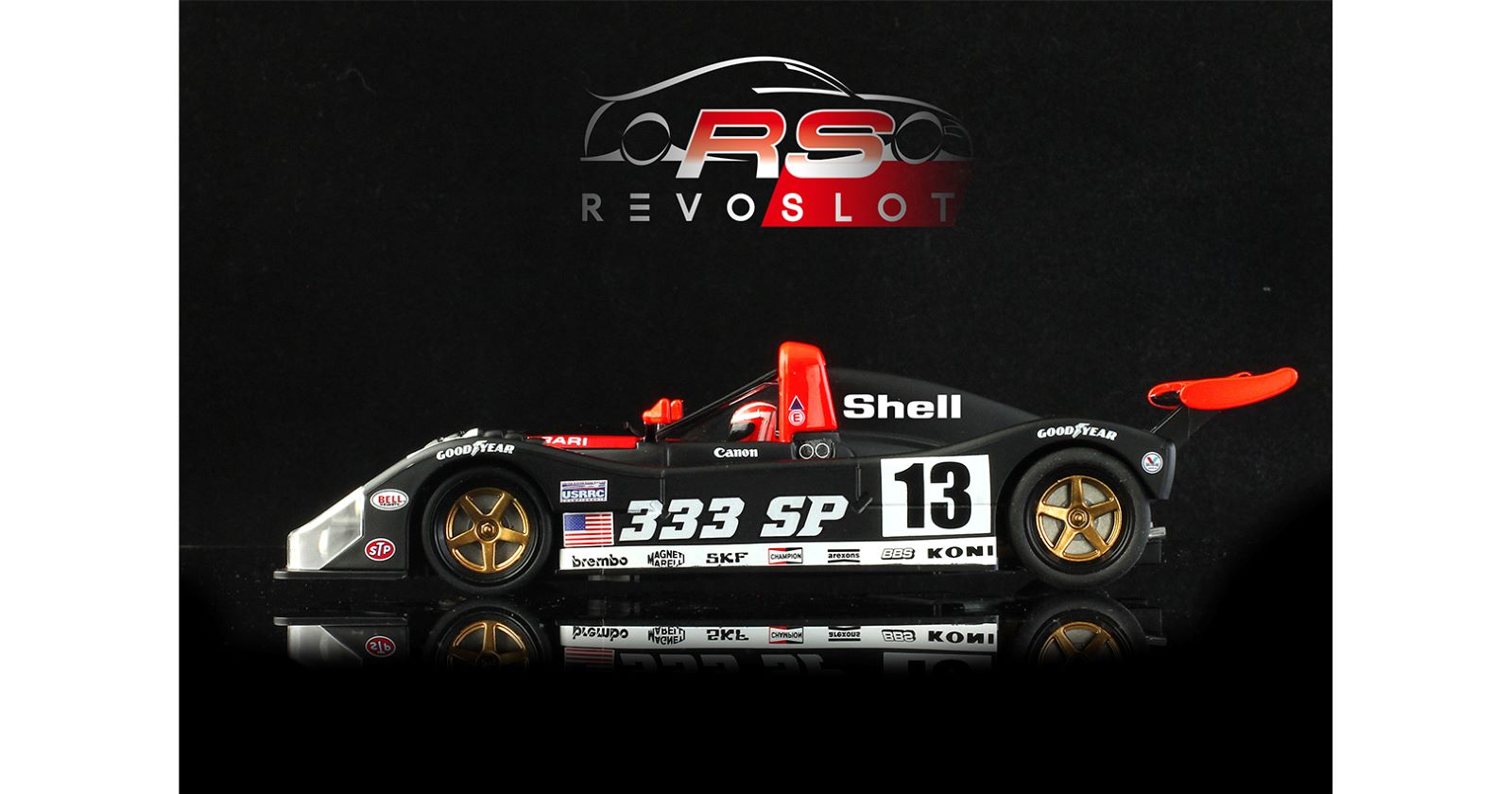

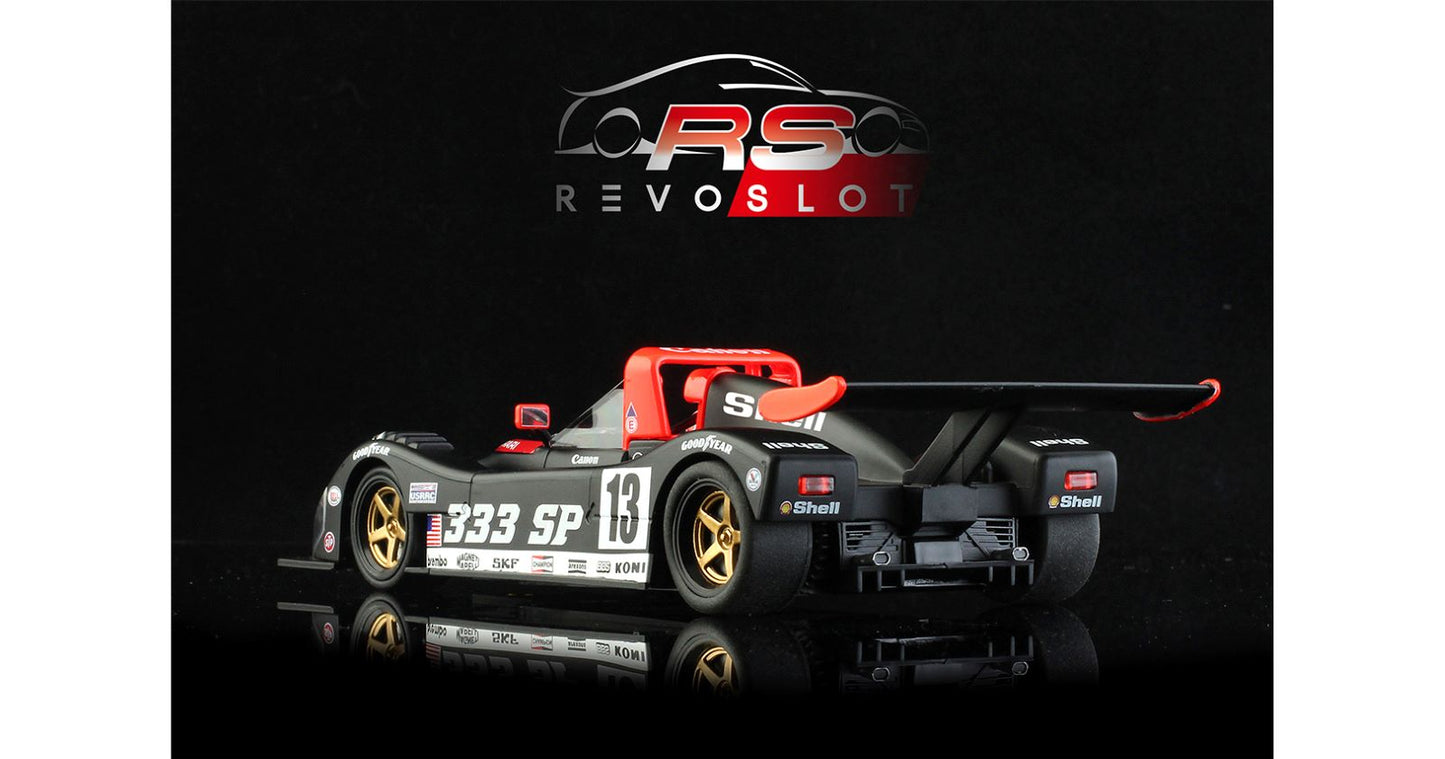

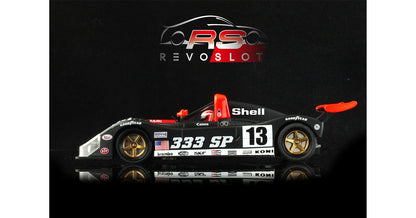

RevoSlot RS0276 Ferrari 333SP #13 Black Edition is a 1/32 scale slot car finished in a distinctive matte black Shell-branded livery. Based on Ferrari's 333SP sports prototype, this model combines a detailed plastic body with RevoSlot's adjustable floating aluminium chassis and competition-oriented running gear.

Underneath, the RS0276 features a RevoSlot RS211 21,000 RPM motor in an anglewinder configuration, rear-wheel drive, a 12-tooth pinion and 33-tooth spur gear. Aluminium wheels, calibrated steel axles and flanged ball bearings complete the mechanical package.

Features

  • Ferrari 333SP #13 Black Edition
  • Matte black Shell-branded finish
  • Detailed plastic body
  • Adjustable floating anodised aluminium chassis
  • RevoSlot RS211 21,000 RPM motor
  • Anglewinder motor configuration
  • Rear-wheel drive
  • 12-tooth pinion and 33-tooth spur gear
  • Aluminium front and rear wheels
  • Calibrated 3mm steel axles
  • 3 × 6mm flanged ball bearings
  • Adjustable chassis float
  • Analogue operation
  • No lighting or traction magnet fitted

Factory-Fitted Components

Motor RS211 – 21,000 RPM
Motor Holder RS207 – Aluminium anglewinder motor holder
Pinion RS212 – 12-tooth pinion, 6.4mm diameter
Spur Gear S-419 – 33-tooth nylon anglewinder gear with aluminium hub
Front Tyres RS201M – Low-profile front tyres
Rear Tyres RS202W – Wide full rear tyres, 30 Shore
Front Wheels RS147 – Aluminium front wheels with M3 screws
Rear Wheels RS148 – Aluminium rear wheels with M3 screws
Front Axle Holders RS205M – Holders and screws
Rear Axle Holders RS206 – Holders and screws
Axles RS209 – Calibrated 50mm steel axles, 3mm diameter
Bearings S-410 – 3 × 6mm flanged ball bearings
Guide RS210 – 7mm guide
Guide Screws RS210S – Steel guide screws
Guide Springs RS210SP – Guide springs
Chassis Float Nuts RS208 – Brass nuts and screws
Chassis Plate RS145 – Anodised aluminium chassis plate
Body Plate RS144 – Anodised aluminium body plate
Fasteners RS213 – Full screw set

Motor Specifications

Manufacturer RevoSlot
Motor Code RS211
Motor Speed 21,000 RPM
Test Voltage Not independently verified
Torque Not published in the consulted specifications
Motor Position Anglewinder
Drive Rear-wheel drive
Pinion 12 teeth
Spur Gear 33 teeth
Gear Ratio 12:33 (2.75:1)

Technical Specifications

Manufacturer RevoSlot
Product Code RS0276
Model Ferrari 333SP #13
Edition Black Edition
Livery Matte black with Shell branding
Scale 1/32
Body Material Plastic
Chassis Adjustable floating anodised aluminium
Motor RS211, 21,000 RPM
Motor Configuration Anglewinder
Drivetrain Rear-wheel drive
Gear Ratio 12:33
Axles 3mm diameter calibrated steel
Axle Length 50mm
Wheels Aluminium
Bearings 3 × 6mm flanged ball bearings
Front Tyres Low-profile
Rear Tyres 30 Shore wide full tyres
Lighting Not fitted
Magnet Not fitted
Operation Analogue
Digital Conversion Compatible with suitable aftermarket decoder
Barcode (EAN) Not independently verified

Digital conversion: The RS0276 is supplied as an analogue car. Digital operation requires a suitable aftermarket decoder and installation. Check decoder dimensions and wiring requirements before conversion.

Age recommendation: Not suitable for children under 3 years. Contains small parts.
