RevoSlot RS0282A Mazda RX-7 White Kit Type A – 1/32
The RevoSlot RS0282A Mazda RX-7 White Kit Type A is a 1/32 scale slot car kit featuring the first-generation Mazda RX-7 in Type A body configuration. It is supplied with a fully assembled performance chassis and an unpainted white injection-moulded body ready for painting and finishing.
The Type A RX-7 is the narrower of the two RevoSlot RX-7 body styles, with a rear body width of approximately 57.4 mm across the rear fender flares. The chassis uses an aluminium floating design with an adjustable anglewinder transmission and components developed around the RevoSlot/BRM performance platform.
Important: this is a white kit, not a finished painted RTR model. The body, transparent parts, fins and small accessories require finishing and assembly. Glue, paint and finishing materials are not included.
Key Features
- RevoSlot RS0282A Mazda RX-7 White Kit Type A
- 1/32 scale
- Unpainted white injection-moulded body
- Type A / 1979-style RX-7 body configuration
- Fully assembled aluminium floating chassis
- Adjustable anglewinder transmission
- RevoSlot RS211 21,000 rpm motor
- Rear-wheel drive
- No traction magnet
- No lighting
- No chassis suspension
- Aluminium front and rear wheels with M3 wheel screws
- Ball-bearing supported rear axle
- 50 mm front and rear axle width specification
- Supplied with transparent parts, fins and small body accessories
- Compatible with Carrera DIGITAL 132 conversion using 20026732
- Compatible with Scalextric digital conversion using Slot.it SP15c1

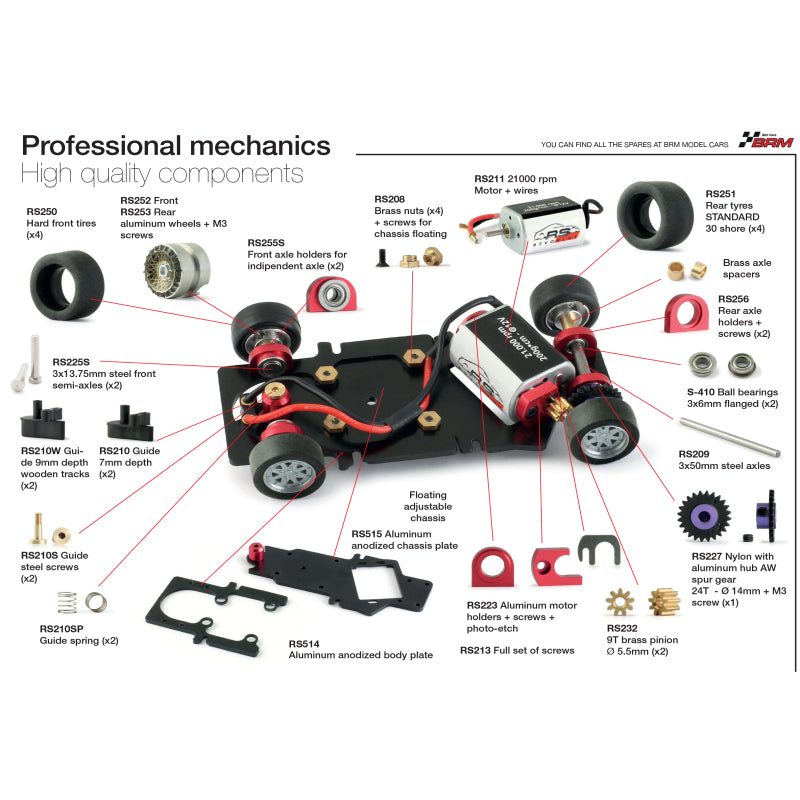

Specifications & Fitted Components
| Component | Fitted specification | Manufacturer code |
|---|---|---|
| Body | Mazda RX-7 Type A, unpainted white injection-moulded body | RS0282A |
| Chassis | Aluminium floating adjustable chassis | Exact chassis spare reference not independently verified |
| Motor | RevoSlot short-can motor, 21,000 rpm | RS211 |
| Motor configuration | Anglewinder | — |
| Drive | Rear-wheel drive | — |
| Pinion | Tooth count is source-conflicted; see verification note below | Exact fitted reference not sufficiently verified |
| Crown gear | Tooth count is source-conflicted; see verification note below | Exact fitted reference not sufficiently verified |
| Front wheels | Aluminium wheels with M3 screws | Exact fitted wheel reference not independently verified |
| Rear wheels | Aluminium wheels with M3 screws | Exact fitted wheel reference not independently verified |
| Front tyres | Hard/low-profile front tyre specification | RS250 |
| Rear tyres | Standard-compound rear tyres, Shore 30 | RS251 |
| Rear axle bearings | Flanged ball bearings, 6 × 3 mm | S-410 |
| Guide | 7 mm deep guide | RS210 |
| Guide screws | Steel guide screws | RS210S |
| Guide springs | Guide spring set | RS210SP |
| Body screws | Full RevoSlot screw set | RS213 |
| Motor-mount hardware | Brass nuts and screws | RS208 |
| Magnet | No traction magnet | — |
| Lighting | None fitted | — |
| Suspension | None | — |
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | RevoSlot |
| Product code | RS0282A |
| Model | Mazda RX-7 White Kit Type A |
| Scale | 1:32 |
| System | Analogue |
| Production year | 2025 |
| Body colour | White / unpainted |
| Chassis | Aluminium floating adjustable chassis |
| Motor position | Anglewinder |
| Motor | RS211, 21,000 rpm |
| Drive | Rear-wheel drive |
| Front axle width | 50 mm |
| Rear axle width | 50 mm |
| Rear body width | Approximately 57.4 mm across the Type A rear fender flares |
| Magnet | No |
| Lighting | No |
| Suspension | No |
| Digital conversion – Carrera | Carrera DIGITAL 132 decoder 20026732 |
| Digital conversion – Scalextric | Slot.it SP15c1 |
White Kit – What Is Included?
The RS0282A is supplied as a paint-and-finish white kit. The chassis is already assembled, while the body is supplied unpainted. Transparent parts, fins and small accessories are included for the modeller to install and finish.
This makes the RS0282A particularly suitable for racers and modellers wanting to create their own RX-7 livery rather than starting with a pre-painted production car.
