RevoSlot
RevoSlot RS0299 Porsche Kremer K8 Repsol #5 Le Mans 1997 (1/32) Slot Car
RevoSlot RS0299 Porsche Kremer K8 Repsol #5 Le Mans 1997 (1/32) Slot Car
SKU:RS0299
Low stock: 3 left
Couldn't load pickup availability

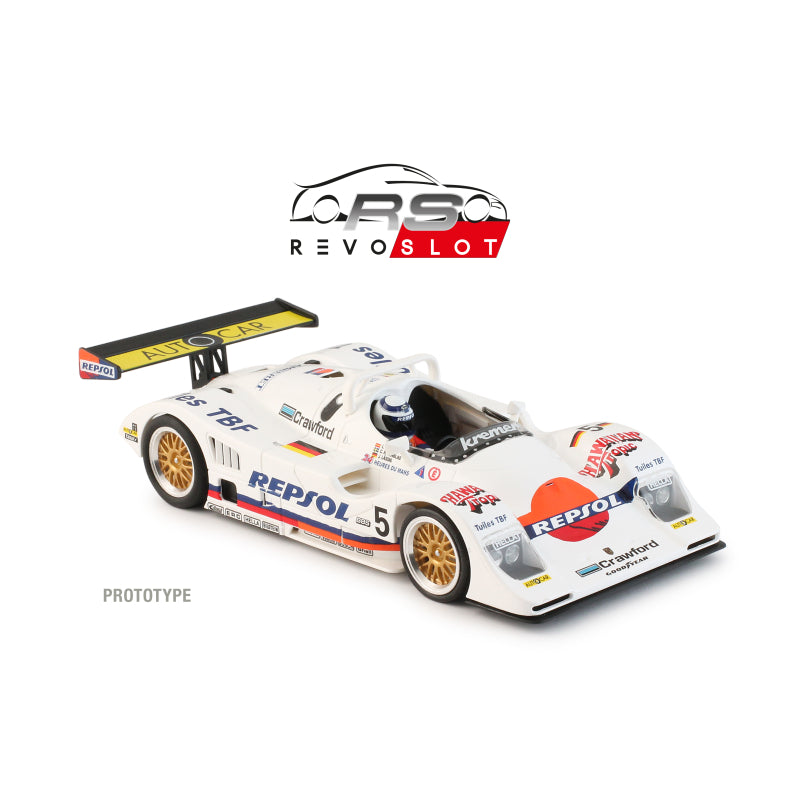

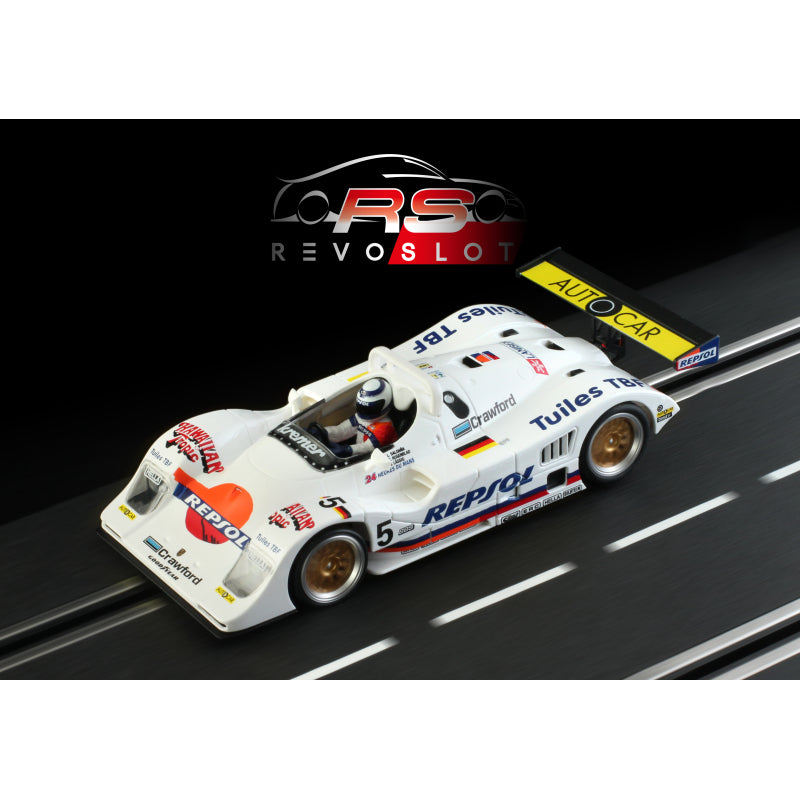

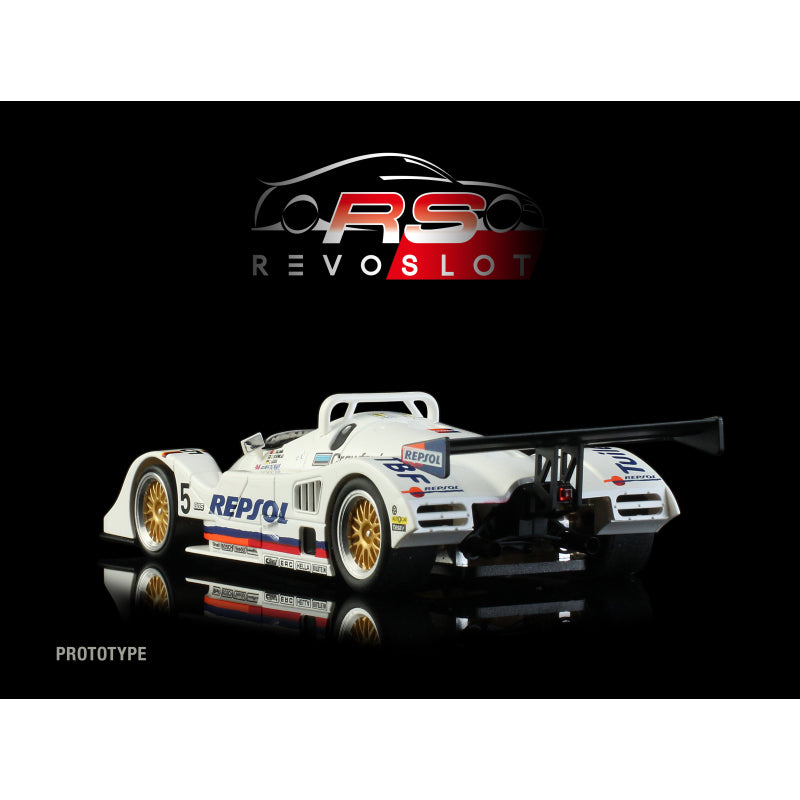

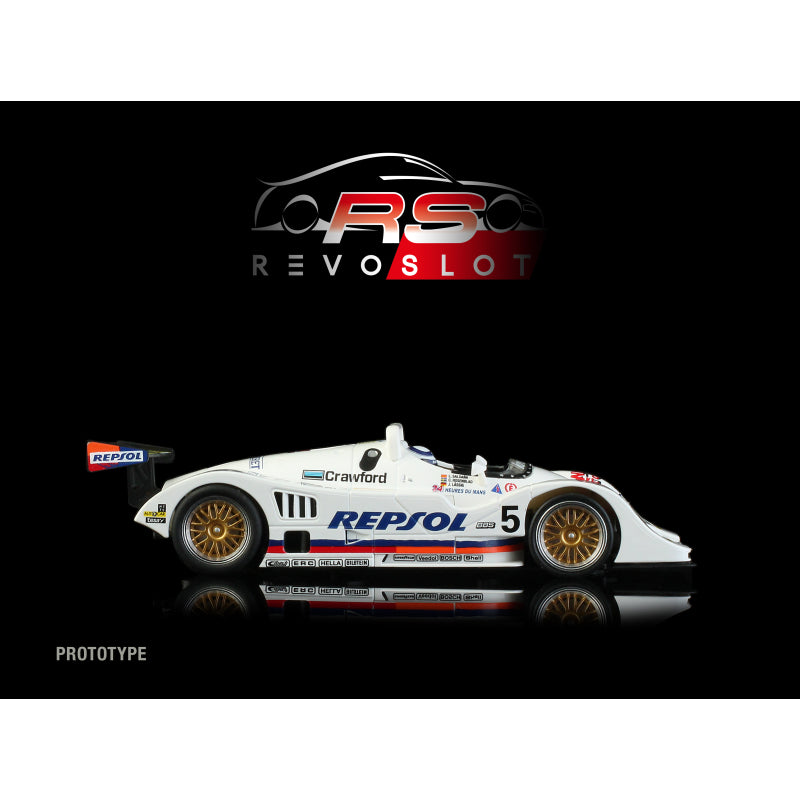

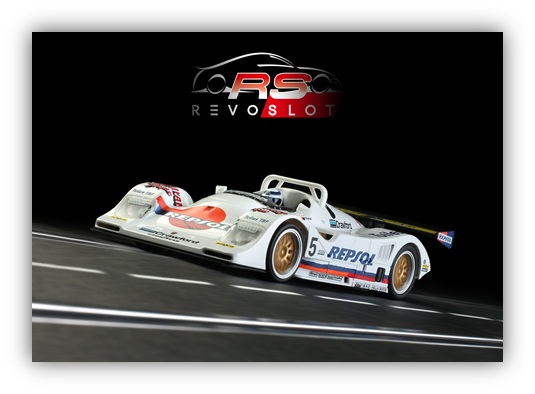

RevoSlot RS0299 Porsche Kremer K8 Repsol #5 – Le Mans 1997 (1/32)
The RevoSlot RS0299 Porsche Kremer K8 Repsol #5 is a highly detailed (1/32) scale reproduction of the Kremer Racing Porsche K8 Spyder that competed at the 1997 24 Hours of Le Mans. Finished in the distinctive white and Repsol/Hawaiian Tropic livery, this model combines RevoSlot's detailed bodywork with a precision aluminium racing chassis and BRM-quality mechanical components.
The RS0299 uses a 21,000 RPM short-can motor in anglewinder configuration, 12:33 gearing, calibrated 3mm steel axles, aluminium wheels and ball bearings. The floating aluminium chassis is adjustable, making this a serious racing-oriented slot car rather than simply a display model.
Key Features
- RevoSlot RS0299 – Porsche Kremer K8 Spyder Repsol #5
- (1/32) scale
- 1997 24 Hours of Le Mans livery
- Drivers: Tomás Saldaña, Carl Rosenblad & Jürgen Lässig
- High-detail injection-moulded body with interior
- Type B short-body K8 configuration
- Anodised aluminium floating adjustable chassis
- RevoSlot RS211 21,000 RPM short-can motor
- Anglewinder motor configuration
- 12:33 gearing
- Calibrated 3mm steel axles
- Aluminium front and rear wheels with M3 screws
- Ball bearings front and rear
- Hard/low-profile front tyres and high-grip rear tyres
- Aluminium motor and axle holders
- Brass chassis adjustment nuts and axle spacers
- No lighting
- No magnet fitted as standard
- Analogue operation
Specifications & Fitted Components
| Component | Specification | Product Code / Reference |
|---|---|---|
| Body | Porsche Kremer K8 Spyder, Type B short-body configuration, Repsol #5 livery | RS0299 |
| Chassis | Anodised aluminium floating and adjustable chassis | RS0299 chassis – separate chassis reference not published |
| Motor | Short-can, 21,000 RPM; anglewinder installation | RS211 |
| Motor Wires | Supplied with RS211 motor | RS211 |
| Pinion | 12-tooth RevoSlot pinion, Ø6.4mm | RS212 |
| Spur Gear | 33-tooth nylon anglewinder gear with aluminium hub | S-419 |
| Gear Ratio | 12:33 | RS212 + S-419 |
| Front Axle | Calibrated steel, 3mm diameter | RS0299 fitted component – individual reference not verified |
| Rear Axle | Calibrated steel, 3mm diameter | RS0299 fitted component – individual reference not verified |
| Front Bearings | Ball bearings for 3mm axle | RS0299 fitted component – individual reference not separately published |
| Rear Bearings | Flanged ball bearings, 6 × 3mm | S-410 |
| Front Wheels | Aluminium wheels; measured outside diameter approximately 19.8mm | RS0299 fitted component – individual wheel reference not verified |
| Rear Wheels | Aluminium wheels; measured outside diameter approximately 21.4mm | RS0299 fitted component – individual wheel reference not verified |
| Wheel Fixings | M3 wheel set screws | Individual fitted reference not verified |
| Front Tyres | Hard / low-profile rubber front tyres | RS0299 fitted component – individual reference not verified |
| Rear Tyres | High-grip rubber, approximately Shore 30 | RS0299 fitted component – individual reference not verified |
| Guide | RevoSlot deep guide arrangement with guide spring | RS210 family – exact RS0299 fitted reference not separately published |
| Guide Screw | Steel guide fixing screw | RS210S |
| Guide Spring | Guide spring | RS210SP |
| Axle Spacers | Brass axle spacers | Individual fitted reference not verified |
| Motor Holder | Aluminium anglewinder motor holder | Individual fitted reference not published |
| Axle Holders | Aluminium axle holders | Individual fitted reference not published |
| Chassis Adjustment | Brass nuts for adjustable floating chassis | Individual fitted reference not published |
| Rear Wing Mount | Magnetic rear-wing attachment | Individual fitted reference not published |
Physical Specifications
| Specification | Measurement |
|---|---|
| Scale | (1/32) |
| Body Type | Type B – short body |
| Overall Length | Approximately 140mm |
| Wheelbase | 83mm |
| Front Track | 60mm |
| Rear Track | 60mm |
| Front Wheel Diameter | Approximately 19.8mm |
| Rear Wheel Diameter | Approximately 21.4mm |
| Total Weight | Approximately 103g |
| Body Weight | Approximately 27g |
| Axle Diameter | 3mm |
Racing & Mechanical Setup
The RS0299 is built around RevoSlot's adjustable aluminium chassis system. The floating chassis allows the body and chassis movement to be tuned for different track conditions, while the aluminium motor and axle holders, calibrated 3mm steel axles and ball bearings provide a strong mechanical platform for club-level racing.
The standard 12:33 anglewinder transmission combines the RS212 12-tooth pinion with the S-419 33-tooth nylon spur gear. The car uses rear-wheel drive and does not have lights fitted.
The car is supplied as an analogue slot car. RevoSlot-compatible digital conversions are possible, but digital conversion requires installation work rather than being a plug-and-play factory installation.
The Real Car – 1997 24 Hours of Le Mans
The real #5 Kremer K8 Spyder was entered by Kremer Racing for the 1997 24 Hours of Le Mans. It was driven by Tomás Saldaña, Carl Rosenblad and Jürgen Lässig.
The car qualified 15th on the grid with a 3:55.981 lap. Unfortunately, the #5 K8 did not finish the race, retiring with an engine failure after completing 103 laps.
Limited Edition Status
The RS0299 is a standard RevoSlot production model. I have found no verified manufacturer production quantity identifying it as a numbered limited edition, so no arbitrary production figure is stated.
What's Included
- 1 × RevoSlot RS0299 Porsche Kremer K8 Repsol #5
- Fully assembled aluminium floating chassis
- RS211 21,000 RPM motor
- 12:33 anglewinder transmission
- Aluminium front and rear wheels
- Rubber front and rear tyres
- Ball bearings
- 3mm calibrated steel axles
- Guide system and spring
