Scaleauto SC-7144 Mercedes-Benz W154 1938 GP Classic 1/24 White Kit Slot Car
Scaleauto SC-7144 Mercedes-Benz W154 1938 GP Classic 1/24 White Kit Slot Car
SKU:SC-7144
Low stock: 3 left
Couldn't load pickup availability
Scaleauto SC-7144 Mercedes-Benz W154 1938 GP Classic 1/24 White Kit

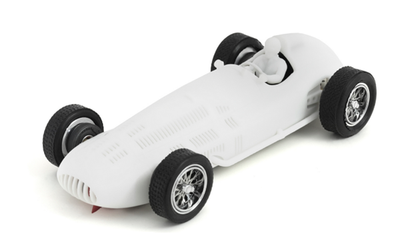

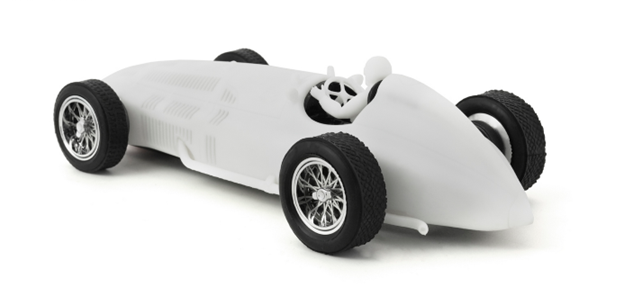

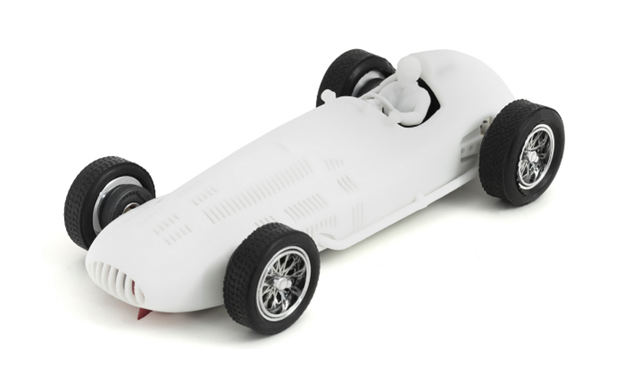

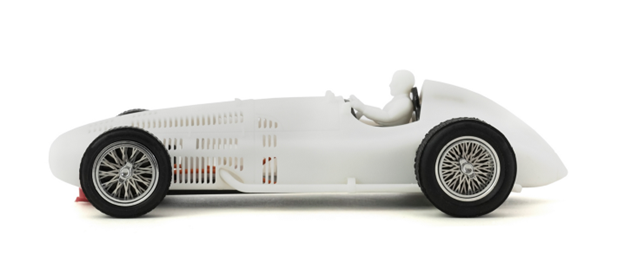

Build one of the most significant Grand Prix racing cars of the pre-war era with the Scaleauto SC-7144 Mercedes-Benz W154 1938. Part of Scaleauto's GP Classic 1/24 range, this highly detailed 1/24 scale Mercedes-Benz W154 white kit combines a resin body with a competition-oriented Scaleauto chassis and running gear.
The Mercedes-Benz W154 was one of the dominant Grand Prix cars of the 1938 season. Developed by Daimler-Benz for the new 3.0-litre supercharged Grand Prix regulations, the W154 featured a front-mounted V12 engine and became one of the defining Silver Arrow racing cars of the late 1930s.
Please note: the SC-7144 is supplied as a white kit for assembly and painting. Paint, glue and finishing materials are not included. The body is supplied unpainted, making this an ideal project for experienced slot-car builders, collectors and racers who want to finish their Mercedes W154 to their own specification.
Mercedes-Benz W154 – 1938 Grand Prix Racing
The Mercedes-Benz W154 was introduced for the 1938 Grand Prix season following the change to the 3.0-litre engine regulations. Its supercharged V12 engine and advanced chassis design made it one of the fastest racing cars of its era.
The W154 achieved major Grand Prix victories during 1938, including wins in Germany, Switzerland and France. The real car was operated by the Daimler-Benz AG works racing team and formed part of the famous Mercedes-Benz Silver Arrows programme.
Scaleauto GP Classic 1/24
The SC-7144 forms part of Scaleauto's dedicated GP Classic 1/24 range, alongside historic Grand Prix machines from Mercedes-Benz, Auto Union, Maserati, Alfa Romeo and Talbot.

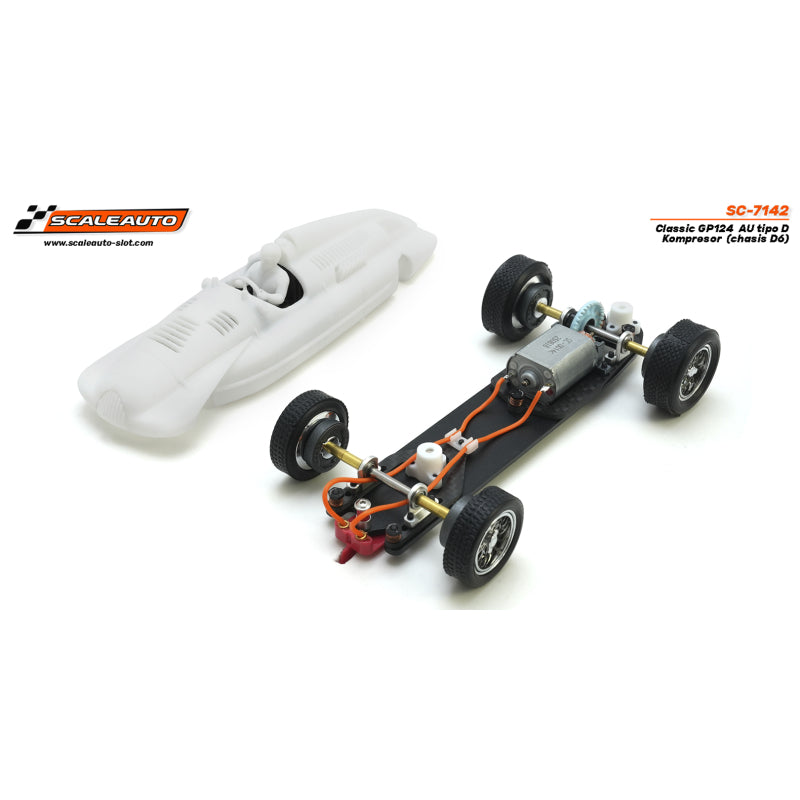

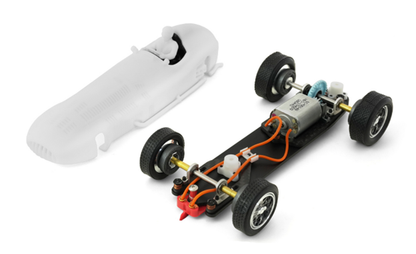

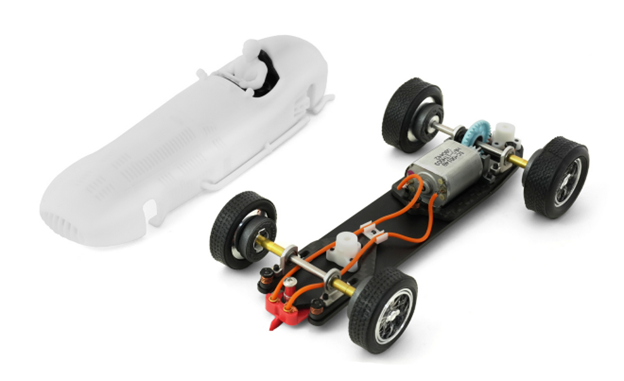

Unlike a conventional ready-to-run slot car, the GP Classic range is designed around model building and competition preparation. The SC-7144 combines a resin body with Scaleauto GP Classic chassis components, allowing the finished car to be assembled, painted and prepared according to the builder's preferences.
Key Features
- Scaleauto SC-7144
- Mercedes-Benz W154
- 1938 Grand Prix specification
- GP Classic 1/24 range
- 1:24 scale
- Unpainted white kit
- Resin body
- Designed for assembly and painting
- Analogue slot-car system
- Inline motor configuration
- No factory traction magnet
- Plastic front wheels
- Aluminium rear wheels
- Scaleauto SC-1603 guide
- Scaleauto SC-0014-family motor specification
- High-quality competition-oriented components
- Paint and glue not included

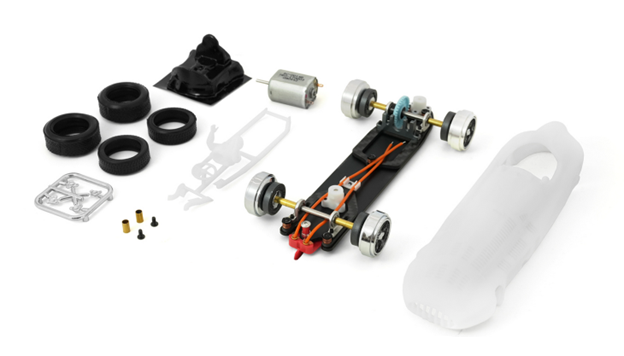

Specifications & Supplied Components
| Component | Description | Scaleauto Product Code | Dimensions / Specification |
|---|---|---|---|
| Complete kit | Mercedes-Benz W154 1938 GP Classic white kit | SC-7144 | 1:24 scale |
| Body | Unpainted Mercedes-Benz W154 resin body | SC-7144 | Resin; unpainted |
| Chassis | Scaleauto GP Classic chassis system | GP124 Classic | 1:24 |
| Front wheels | Plastic front wheels supplied with the kit | Original kit component | Plastic; exact diameter/width not published |
| Rear wheels | Aluminium rear wheels supplied with the kit | Original kit component | Aluminium; exact diameter/width not published |
| Front wheel alternative | Scaleauto aluminium GP Classic front wheel permitted by current technical regulations | SC-4087A | Optional competition component; not claimed as factory-fitted |
| Rear wheel | Scaleauto aluminium GP Classic rear wheel | SC-4088A | Competition specification |
| Front tyres | GP Classic front rubber tyres | SC-4770 | Minimum competition diameter 27 mm |
| Rear tyres | GP Classic rear rubber tyres | SC-4771 | Minimum competition diameter 27 mm |
| Motor | Scaleauto GP Classic inline motor | SC-0014 | 20,000 rpm specification in current GP Classic regulations; exact kit revision should be checked before claiming this as factory-fitted |
| Motor support | Scaleauto GP Classic inline motor support | SC-8902 | GP Classic inline |
| Guide | Scaleauto guide | SC-1603 | Guide specified for SC-7144 by Australian retailer |
| Guide support bush | GP Classic guide support bush for 1/32 guides | SC-8149 | Chassis guide-support component |
| Front axle | 3 mm solid steel axle | GP Classic specification | 3 mm diameter |
| Rear axle | 3 mm solid steel axle | GP Classic specification | 3 mm diameter |
| Pinion | Scaleauto pinion | Not fixed by SC-7144 specification | Tooth count and diameter are free within GP Classic regulations |
| Crown gear | Scaleauto Procomp Inline crown | Not fixed by SC-7144 specification | Tooth count not fixed by current regulations |
| Magnet | No traction magnet permitted | — | Magnets prohibited except motor magnets |
| Body material | Resin | — | Unmodified resin body |
| Interior | Driver/cockpit assembly | Original kit component | Original GP Classic cockpit required |
Technical Specifications
| Manufacturer | Scaleauto |
| Product Code | SC-7144 |
| Range | GP Classic 124 |
| Scale | 1:24 |
| Vehicle | Mercedes-Benz W154 |
| Year | 1938 |
| Team | Daimler-Benz AG |
| System | Analogue |
| Body | Resin, unpainted |
| Motor Configuration | Inline |
| Motor | Scaleauto SC-0014 family; current GP Classic Tech 1 specification 20,000 rpm |
| Drive | Rear-wheel drive |
| Magnet | No – traction magnets prohibited |
| Front Wheels | Plastic |
| Rear Wheels | Aluminium |
| Guide | SC-1603 |
| Front Axle | 3 mm solid steel |
| Rear Axle | 3 mm solid steel |
| Minimum Front Tyre Diameter | 27 mm under current GP Classic regulations |
| Minimum Rear Tyre Diameter | 27 mm under current GP Classic regulations |
| Minimum Chassis Clearance | 3 mm |
| Minimum Body Clearance | 3 mm |
| Maximum Front Track | 78 mm |
| Minimum Front Track | 73 mm |
| Maximum Rear Track | 80 mm |
| Minimum Rear Track | 79 mm |
| Body Weight | 35 g under current GP Classic technical regulations |
| Lighting | None |
| Assembly Required | Yes |
| Painting Required | Yes |
| Paint Included | No |
| Glue Included | No |
