Sideways SW95 Ferrari 512BB/LM #48 Simon Phillips Racing Team Le Mans 1981 1/32 Slot Car

Sideways SW95 Ferrari 512BB/LM #48 Simon Phillips Racing Team Le Mans 1981 1/32 Slot Car

SW95

$118.00 AUD
$118.00 AUD
Sale Sold out
Shipping calculated at checkout.

8 in stock

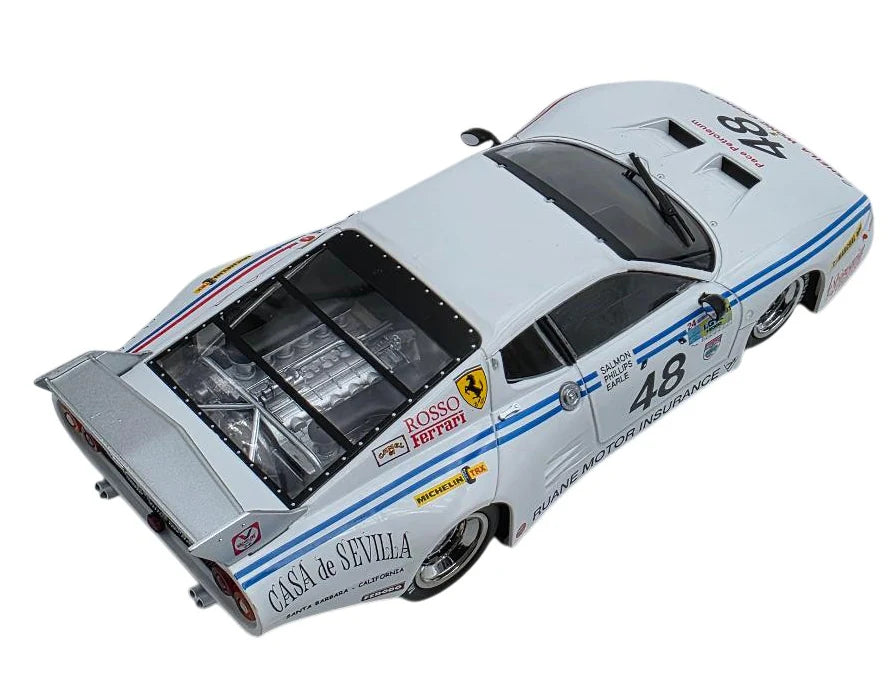

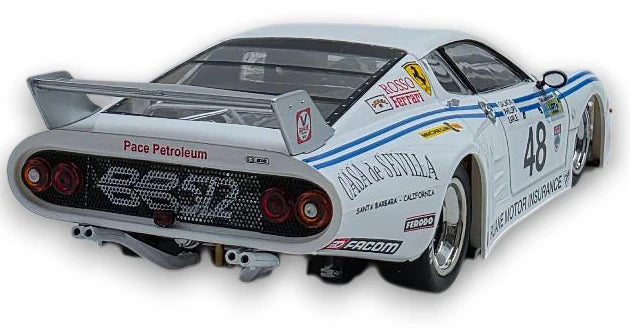

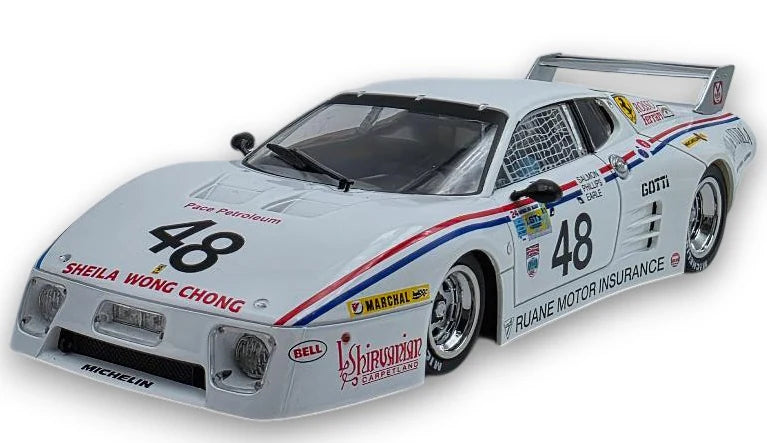

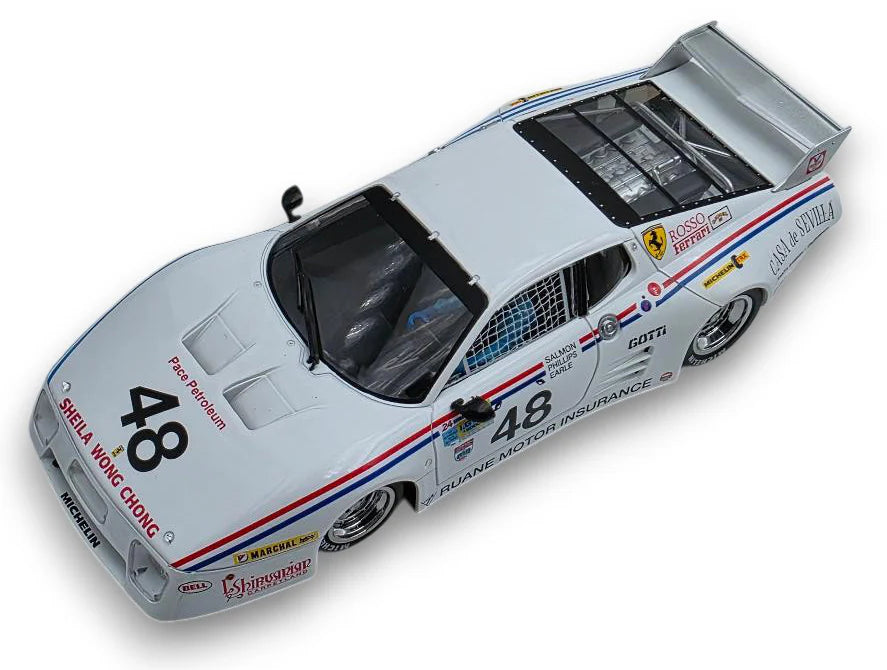

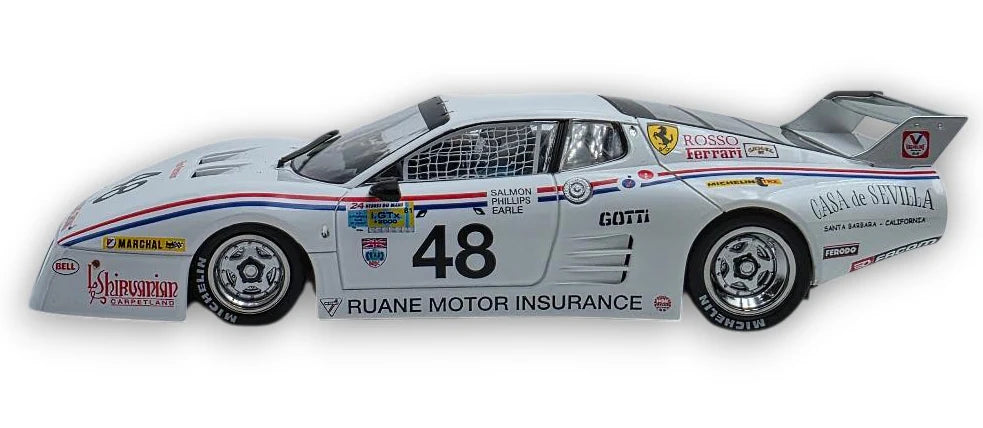

Sideways SW95 Ferrari 512BB/LM #48 – Le Mans 24 Hours 1981

The Sideways SW95 Ferrari 512BB/LM #48 reproduces the Group 5 Ferrari entered by the Simon Phillips Racing Team at the 24 Hours of Le Mans in 1981.

Driven by Simon Phillips, Steve Earle and Mike Salmon, the Ferrari 512BB/LM competed in the distinctive wide-bodied Group 5 specification. Sideways combines the highly detailed Ferrari body with a low-profile Slot.it Flat-6 motor, anglewinder drivetrain and aluminium rear wheels for strong track performance.

Model Features

  • Sideways by Racer 1/32 scale slot car
  • Ferrari 512BB/LM Group 5
  • Race number #48
  • Simon Phillips Racing Team
  • Simon Phillips / Steve Earle / Mike Salmon
  • 24 Hours of Le Mans, 1981
  • Analogue operation
  • Anglewinder configuration
  • Rear-wheel drive
  • Slot.it Flat-6 20,500 rpm motor
  • 11:28 anglewinder gearing
  • Aluminium rear wheels
  • Plastic front wheels
  • Slot.it C1 compound tyres
  • Copper contact braids
  • Fitted magnet
  • No lighting
  • High-detail interior and driver
  • Clear plastic display box

Specifications & Fitted Components

Component Fitted Specification / Manufacturer Reference
Model Ferrari 512BB/LM #48 – Simon Phillips Racing Team, Le Mans 1981
Manufacturer Sideways by Racer
Model Code SW95
Scale 1:32
System Analogue
Body High-detail Ferrari 512BB/LM Group 5 body with detailed interior
Interior Detailed interior with driver figure
Motor Slot.it MN09CH / SIMN09CH Flat-6 – 20,500 rpm, 200 g·cm @ 12 V
Motor Configuration Anglewinder
Pinion Gear 11-tooth anglewinder pinion; exact fitted Slot.it reference not verified
Spur Gear 28-tooth anglewinder spur gear; exact fitted Slot.it reference not verified
Gear Ratio 11:28
Front Wheels Plastic wheels, 15.8 × 8.2 mm
Rear Wheels Aluminium wheels, 17.3 × 8.2 mm
Front Tyres Slot.it C1-compound rubber tyres; exact fitted tyre reference not verified
Rear Tyres Slot.it C1-compound rubber tyres; exact fitted tyre reference not verified
Front Axle Hardened steel axle, Ø2.38 mm
Rear Axle Hardened steel axle, Ø2.38 mm
Axle Bearings / Bushes Sideways chassis axle bearing/bush system; exact fitted reference not verified
Guide Sideways/Slot.it-compatible screw-mounted guide blade; exact fitted reference not verified
Contact Braids Copper braids
Motor Mount Separate anglewinder motor mount; Sideways chassis system
Magnet Fitted
Lighting None
Drive Rear-wheel drive
Weight 84 g

Race Car Background

The full-size Ferrari 512BB/LM #48 competed at the 24 Hours of Le Mans in 1981 as a Simon Phillips Racing Team entry. The driver line-up was Simon Phillips, Steve Earle and Mike Salmon.

The Sideways model captures the wide Group 5 bodywork, large aerodynamic elements and distinctive endurance-racing appearance of the Ferrari 512BB/LM in period specification.

Technical Notes

The SW95 uses the low-profile Slot.it Flat-6 MN09CH motor. The MN09CH is rated at 20,500 rpm and 200 g·cm at 12 V and is specifically used as the stock Flat-6 motor in Sideways Group 5 cars. :contentReference[oaicite:2]{index=2}

The documented SW95 drivetrain uses an 11-tooth pinion and 28-tooth spur gear in anglewinder configuration. The model is fitted with plastic front wheels measuring 15.8 × 8.2 mm and aluminium rear wheels measuring 17.3 × 8.2 mm. :contentReference[oaicite:3]{index=3}

Important catalogue note: the publicly available SW95 documentation does not reliably identify individual manufacturer SKUs for every fitted chassis component. Rather than assigning unverified Slot.it references, those components have deliberately been identified without invented part numbers.

Sideways SW95 is supplied as an analogue 1/32 scale slot car, ready for competition-oriented running on compatible analogue systems.
