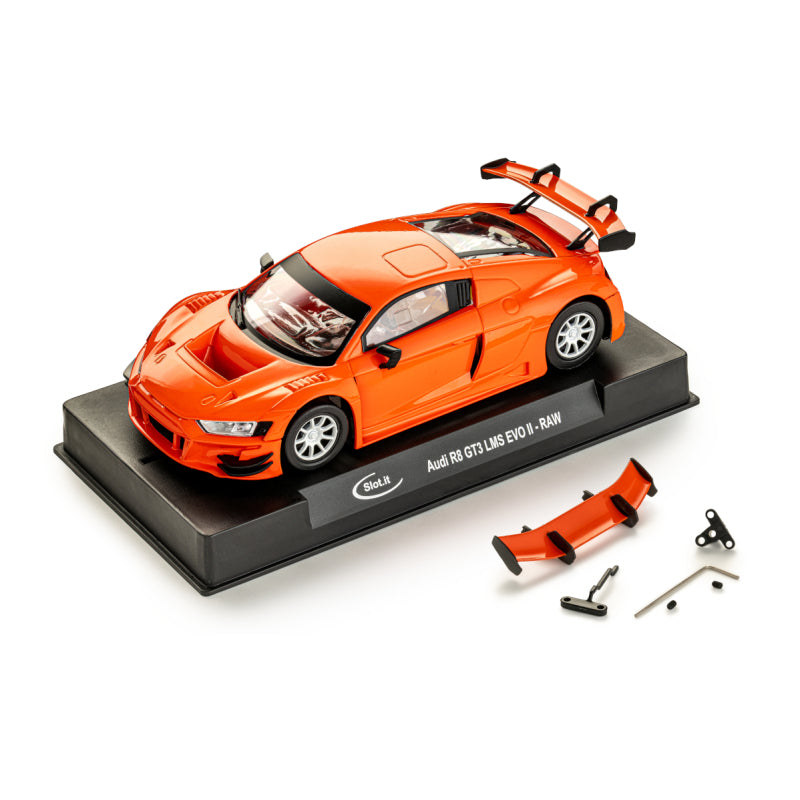

Slot.it CA58R1 - Audi R8 LMS EVO II - RAW (orange)

The RAW series are supplied in an anglewinder motor configuration with MN09CH motor and with a polycarbonate cockpit.

BODY: solid orange with polycarbonate cockpit
MOTOR: Slot.it MN09CH Flat 6
MOTOR POD: Anglewinder
DRIVE: Rear wheels
BUSHES: Elliptical Brass
MAGNET: Yes
ADJUSTABLE FRONT AXLE HEIGHT: Yes - requires optional M2.0 Hex screws
AXLE WIDTH: 62mm
AXLE DIA: 2.32mm - 3/32"
FRONT RIMS/TYRES: 17.3x8.2x1.5 tyres PT1167C1
REAR RIMS/TYRES: 17.3x9.75x1.5 Tyres PT1323C1
INSERTS: Plastic
SPARES SUPPLIED: Allen Key
OVERALL LENGTH: 144mm
WHEEL BASE: 85mm
WIDTH: 63.8mm
HEIGHT: 37mm
LIGHTS: None - optional lighting kit available
DIGITAL: supplied with connector for easy universal digital chip assembly
SCALE: 1:32
ISSUED: March 2026
