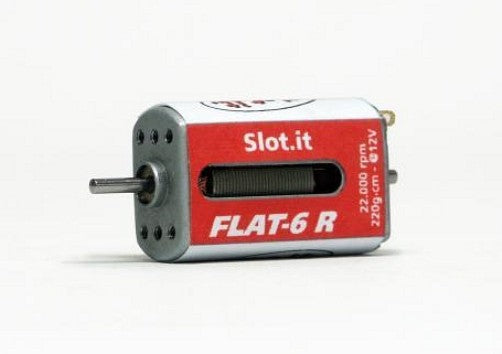

Slot.it MN11H-2 - Flat 6 R 22000rpm - Open Can

QUANTITY: 1 x Flat 6 R Motor -
PINION GEAR: None -
RPM: 22000rpm @ 12vdc -
TOURQUE: 220g*cm @12 vdc -
MOTOR SHAFT DIA.: 2mm - x 7.3mm
MOTOR CAN: Open Boxer Flat 6R -
TYPE: Flat 6 Short shaft length 7.3mm -
MAGNETIC DOWNFORCE: 22g magnetic traction MPM -

ABOUT THE FLAT 6 MOTOR
The FLAT-6 is a revolutionary new concept in slot car racing motors. It is a custom-built Slot.it motor designed both to be compatible with the existing Boxer/NC type motor pods, and to take advantage of a lower center of gravity when used in the special Slot.it motor pods, due to its 'slim' form, that also make it possible using it in anglewinder configuration under very low bodied GT racers.

It comes with two magnet variants: standard, which is the strong magnet found in the V12/3 and Boxer/2, and Race 'R', with a custom built magnet to pack outstanding torque and braking in the motor's flat case.

The V12/3 is an all new motor family from Slot.it. All the existing motor components have been studied and, when necessary, upgraded to a better specification: case, endbell, magnets and balancing have been redesigned and improved. The result is superb torque, braking and power packaged in 'S' can motors that are also very easy to drive.

The V12 motor is an instant drop-in upgrade for most cars, thanks to its double shaft; several versions are available with the proper pinion mounted according to which car the upgrade is planned for, but any V12 motor can be changed into a different configuration just by changing pinion side and/or dimension: for example, a motor in a Scalextric configuration can be changed to an inline standard Slot.it Audi just by changing the pinion side.
